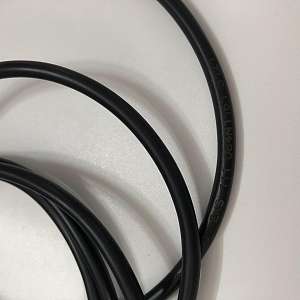

THIẾT BỊ ĐIỀU KHIỂN NHIỆT ĐỘ DANFOSS EKS111, 1.50 m, PTC, 1000 Ohm - C/N 084N1161

Gross weight

0.05 kg

Net weight

0.04 kg

EAN

5702428062336

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Cable length [in]

59.06 in

Cable length [m]

1.5 m

Cable tempr. range [°C] [Max]

80 °C

Cable tempr. range [°C] [Min]

-30 °C

Cable type

PVC

Electrical connection

CABLE WITH PINS

Electrical connection size

2 wire

Measuring range [°C] [Max]

150 °C

Measuring range [°C] [Min]

-55 °C

Measuring range [°F] [Max]

302 °F

Measuring range [°F] [Min]

-67 °F

Packing format

Industrial pack

Product family name

EKS

Product group

Sensors

Product name

Temperature sensor

Protection tube diameter [in]

0.24 in

Protection tube diameter [mm]

6 mm

Protection tube length [in]

1.18 in

Protection tube length [mm]

30 mm

Protection tube material

Stainless steel

PTC Element characteristic

990 Ohm/25°C

Quantity per packing format

150 pc

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element tolerance

± 1%

Sensor element type

PTC

Sensor Insert

Fixed

Type

EKS 111

Wires [pcs]

2 pc
