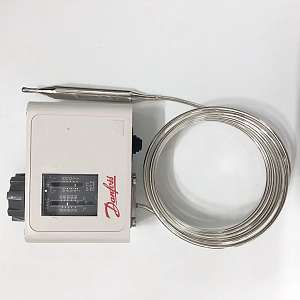

CÔNG TẮC NHIỆT ĐỘ DANFOSS KP77 20°C-60°C C/N 060L112166

Gross weight

0.45 kg

Net weight

0.37 kg

EAN

5702428014878

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [Max]

65 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

150 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

BV
CCC
CE
DNV
EAC
GL
LR
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
CMIM

Cap. tube length fraction [in]

78 3/4 in

Capillary tube length [mm]

2000 mm

Charge type

Adsorption

Contact function

SPDT

Contact rating

AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V

Diff. @ Max. range setting [K] [Max]

10 K

Diff. @ Max. range setting [K] [Min]

3.5 K

Diff. @ Max. range setting[°C] [Max]

10 °C

Diff. @ Max. range setting[°C] [Min]

3.5 °C

Diff. @ Min. range setting [K] [Max]

10 K

Diff. @ Min. range setting [K] [Min]

3.5 K

Diff. @ Min. range setting[°C] [Max]

10 °C

Diff. @ Min. range setting[°C] [Min]

3.5 °C

Differential type

Adjustable

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

Electrical spec. standard

EN 60947-5

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

Max. sensor temperature [°C]

130 °C

Max. sensor temperature [°F]

266 °F

Packing format

Multi pack

Product accessories

Switches accessories

Product description

Thermostat

Product family name

KP thermostat

Product group

Switches and thermostats

Product name

Thermostat

Quantity per packing format

14 pc

Reset function

Auto

Sensor size (Ø x L) [in]

3/8 x 3 3/8 in

Sensor size (Ø x L) [mm]

9.5 x 85 mm

Sensor type

Remote bulb

Serviceable

No

Temperature range [°C] [Max]

60 °C

Temperature range [°C] [Min]

20 °C

Temperature range [°F] [Max]

140 °F

Temperature range [°F] [Min]

68 °F

Type

KP77

UL approval file name

E31024
