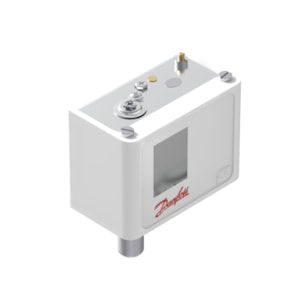

CÔNG TẮC ÁP SUẤT DANFOSS KPI35 -0.2-8 BAR C/N 060-316466

Gross weight

0.34 kg

Net weight

0.31 kg

EAN

5702423147526

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [Max]

65 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

149 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

CCC
CE
EAC
LVD
PZH
RINA
RoHS China
c UL us UL873, CS C22.2
CMIM

Contact function

SPDT gold

Contact rating

AC15=4 A, 440 V
DC13=12 W, 220 V
AC1=10 A, 440 V
AC3=6 A, 440 V
LR=36A, 240V
LR=48A, 120V
for gold 1…30 mA, 5...30 V

Differential [bar] [Max]

1.5 bar

Differential [bar] [Min]

0.4 bar

Differential [psi] [Max]

22 psi

Differential [psi] [Min]

6 psi

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

Max. test pressure [bar] Pe

18 bar

Max. test pressure [psig]

261 psig

Max. Working Pressure [bar]

18 bar

Max. Working Pressure [psig]

261 psig

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure range category

Low pressure

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

36 pc

Regulation range

6 inHg - 116 psig

Regulation range [bar] Pe [Max]

8 bar

Regulation range [bar] Pe [Min]

-0.2 bar

Reset function

Auto

Serviceable

No

Type

KPI35

UL approval file name

E31024
