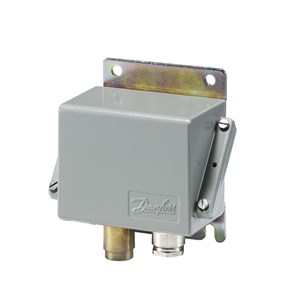

CÔNG TẮC ÁP SUẤT DANFOSS CAS147 6-60 BAR C/N 060-316266

Gross weight

1.18 kg

Net weight

1.1 kg

EAN

5702423151707

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-25 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-13 °F

Approval

ABS
BV
CCC
CE
DNV
EAC
GL
LR
LVD
NKK
RINA
RMRS
RoHS
RoHS China
TYSK

Burst pressure [bar]

240 bar

Contact function

SPDT

Contact rating

AC14=0.1 A, 220 V
AC15=0.1 A, 220 V
DC13=12 W, 125 V

Differential [bar] [Max]

3 bar

Differential [bar] [Min]

1 bar

Differential [psi] [Max]

43.5 psi

Differential [psi] [Min]

14.5 psi

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

Enclosure rating IP

IP67

Max. test pressure [bar] Pe

180 bar

Max. test pressure [psig]

2611 psig

Max. Working Pressure [bar]

120 bar

Max. Working Pressure [psig]

1740 psig

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure sensing element

Diaphragm

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

8 pc

Regulation range [bar] Pe [Max]

60 bar

Regulation range [bar] Pe [Min]

6 bar

Regulation range [psig] Pe [Max]

870 psig

Regulation range [psig] Pe [Min]

87 psig

Serviceable

No

Type

CAS147
