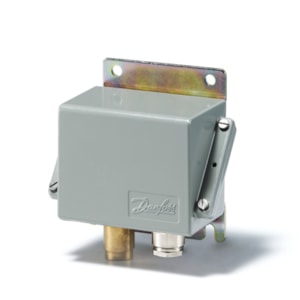

CÔNG TẮC ÁP SUẤT DANFOSS CAS139 10-35 BAR C/N 060-315366

Gross weight

1.03 kg

Net weight

0.95 kg

EAN

5702423151721

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

ABS
BV
CCC
CE
DNV
EAC
GL
LR
LVD
NKK
RINA
RMRS
RoHS
RoHS China
TYSK

Burst pressure [bar]

100 bar

Contact function

SPDT

Contact rating

AC14=0.1 A, 220 V
AC15=0.1 A, 220 V
DC13=12 W, 125 V

Differential [bar]

0.6 bar

Differential [psi]

8.7 psi

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

Enclosure rating IP

IP67

Max. test pressure [bar] Pe

53 bar

Max. test pressure [psig]

769 psig

Max. Working Pressure [bar]

53 bar

Max. Working Pressure [psig]

769 psig

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

8 pc

Regulation range [bar] Pe [Max]

35 bar

Regulation range [bar] Pe [Min]

10 bar

Regulation range [psig] Pe [Max]

508 psig

Regulation range [psig] Pe [Min]

145 psig

Serviceable

No

Type

CAS139
