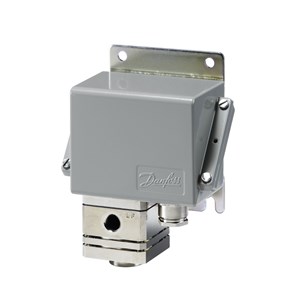

CÔNG TẮC ÁP SUẤT DANFOSS CAS155 0.2-2.5 BAR C/N 060-313066

Gross weight

1.62 kg

Net weight

1.55 kg

EAN

5702423151646

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-25 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-13 °F

Ammonia application

No

Approval

ABS
BV
CCC
CE
DNV
EAC
GL
LR
LVD
NKK
RINA
RMRS
RoHS
RoHS China
TYSK

Burst pressure [bar]

42 bar

Contact differential [bar]

0.1 bar

Contact function

SPDT

Contact rating

AC14=0.1 A, 220 V
AC15=0.1 A, 220 V
DC13=12 W, 125 V

Diff.press.setting range [bar] [Max]

2.5 bar

Diff.press.setting range [bar] [Min]

0.2 bar

Diff.press.setting range [MPa] [Max]

0.25 MPa

Diff.press.setting range [MPa] [Min]

0.02 MPa

Diff.press.setting range [psi] [Max]

36.2 psi

Diff.press.setting range [psi] [Min]

2.9 psi

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

Enclosure rating IP

IP67

Max. test pressure [bar] Pe

22 bar

Max. test pressure [psig]

319 psig

Max. Working Pressure [bar]

22 bar

Max. Working Pressure [psig]

319 psig

Operat. range LP side [bar] Pe [Max]

8 bar

Operat. range LP side [bar] Pe [Min]

0 bar

Operat. range LP side [psig]Pe [Max]

115 psig

Operat. range LP side [psig]Pe [Min]

0 psig

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Product accessories

Generic accessories

Product description

Diff. Pressure Switch

Product group

Switches and thermostats

Product name

Differential pressure switch

Quantity per packing format

8 pc

Reset function

Auto

Serviceable

No

Type

CAS155
