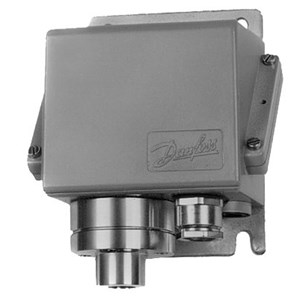

CÔNG TẮC ÁP SUẤT DANFOSS KPS45 4-40 BAR C/N 060-312166

Mã sản phẩm: 060-312166
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CÔNG TẮC ÁP SUẤT DANFOSS KPS45 4-40 BAR C/N 060-312166

Type: KPS45, Reset function: Auto, Regulation range [bar] Pe: 4.00 - 40.00, Regulation range [psig] Pe: 58.00 - 580.00, Pressure connection size: 1/4, Pressure connection type: G, Pressure Male/Female: Female



Gross weight

1.19 kg

Net weight

1.09 kg

EAN

5702423146949

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-25 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-13 °F

Approval

ABS
BV
CCC
CCS
CE
DNV
EAC
GL
KRS
LR
LVD
NKK
RINA
RMRS
RoHS
RoHS China
TYSK
UL

Burst pressure [bar]

240 bar

Contact function

SPDT gold

Contact rating

AC15=4 A, 440 V
AC1=10 A, 440 V
AC3=6 A, 440 V
DC13=12 W, 220 V
LR max. 50 A
for gold 1…30 mA, 5...30 V

Differential [bar] [Max]

11 bar

Differential [bar] [Min]

2.2 bar

Differential [psi] [Max]

156 psi

Differential [psi] [Min]

32 psi

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP67

Identical product

060-410666

Max. test pressure [bar] Pe

180 bar

Max. test pressure [psig]

2611 psig

Max. Working Pressure [bar]

120 bar

Max. Working Pressure [psig]

1740 psig

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure sensing element

Diaphragm

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

8 pc

Regulation range [bar] Pe [Max]

40 bar

Regulation range [bar] Pe [Min]

4 bar

Regulation range [MPa] Pe [Max]

4 MPa

Regulation range [MPa] Pe [Min]

0.4 MPa

Regulation range [psig] Pe [Max]

580 psig

Regulation range [psig] Pe [Min]

58 psig

Reset function

Auto

Serviceable

No

Type

KPS45

UL approval file name

E73170
