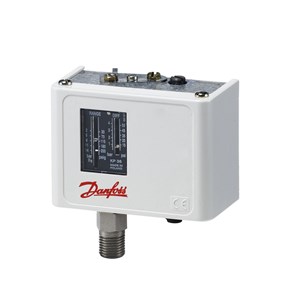

CÔNG TẮC ÁP SUẤT DANFOSS KPI36 4-12 BAR C/N 060-118966

Gross weight

0.35 kg

Net weight

0.31 kg

EAN

5702423146703

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [Max]

65 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

149 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

CCC
CE
EAC
LVD
PZH
RINA
RoHS China
c UL us UL873, CS C22.2
CMIM

Contact function

SPDT

Contact rating

AC15=4 A, 440 V
DC13=12 W, 220 V
AC1=10 A, 440 V
AC3=6 A, 440 V
LR=36A, 240V
LR=48A, 120V

Differential [bar] [Max]

1.6 bar

Differential [bar] [Min]

0.5 bar

Differential [psi] [Max]

23 psi

Differential [psi] [Min]

7 psi

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

Identical product

060-119666

Max. test pressure [bar] Pe

18 bar

Max. test pressure [psig]

261 psig

Max. Working Pressure [bar]

18 bar

Max. Working Pressure [psig]

261 psig

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure range category

Medium pressure

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

36 pc

Regulation range [bar] Pe [Max]

12 bar

Regulation range [bar] Pe [Min]

4 bar

Regulation range [psig] Pe [Max]

174 psig

Regulation range [psig] Pe [Min]

58 psig

Reset function

Auto

Serviceable

No

Type

KPI36

UL approval file name

E31024
