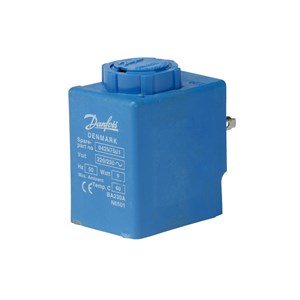

PHỤ TÙNG VAN DANFOSS SOLENOID COIL BA012D 12V C/N 042N7550

Gross weight

0.19 kg

Net weight

0.18 kg

EAN

5702423024667

Actuator size

13.5 mm

Ambient temperature range [°C] [Max]

40 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

104 °F

Ambient temperature range [°F] [Min]

-40 °F

Coil connection

DIN Spade

Coil design standard

VDE 0580

Coil fastening

Nut and snap

Coil winding insulation class

Class H to IEC 85

Colour

Blue

Duty rating

Continuous

Electrical connection

DIN Spade

Electrical connection size

6.3 mm x 0.8 mm

Electrical connection standard

EN175301-803

Electrical connector

3 x spades

Enclosure rating IP

IP00

Packing format

Multi pack

Parts included

Nut
Snap fastener

Parts Program name

EV210B
EV220B 15 - 50
EV310B

Power consumption [W] DC

14 W

Product accessories

Solenoid coil accessories

Product group

Solenoid valves

Product name

Solenoid coil

Quantity per packing format

45 pc

Rel. Humidity [% RH] [Max]

97 %

Rel. Humidity [% RH] [Min]

0 %

Rel. Humidity conditions

Non-condensation

Serviceable

No

Supply voltage [V] DC

12 V

Type

BA012D

Type designation

BA012D
