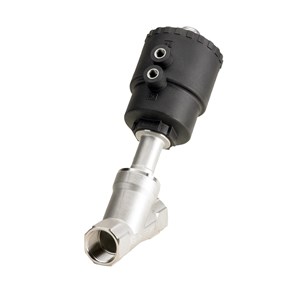

VAN GÓC MỞ RỘNG AV210C C/N 042N4454

Gross weight

2.08 kg

Net weight

1.58 kg

EAN

5702423194490

Ambient temperature range [°C] [Max]

60 °C

Ambient temperature range [°C] [Min]

-30 °C

Ambient temperature range [°F] [Max]

140 °F

Ambient temperature range [°F] [Min]

-22 °F

Body material

Stainless steel

Closing

Against flow

Connection Internal/External

Internal

Connection size [in]

1

Connection type

G

Control head diameter [mm]

63 mm

Control pressure range [bar] [Max]

10 bar

Control pressure range [bar] [Min]

4 bar

Control pressure range [psig] [Max]

145 psig

Control pressure range [psig] [Min]

58 psig

Cv value [gal/min]

23.1 gal/min

Differential pressure [bar] [Max]

11 bar

Differential pressure [bar] [Min]

0 bar

Function

NC

Kv value [m³/h]

20 m3/h

Max. test pressure [bar]

37.5 bar

Max. test pressure [psig]

544 psig

Max. Working Pressure [bar]

25 bar

Max. Working Pressure [psig]

363 psig

Medium temperature range [°C] [Max]

180 °C

Medium temperature range [°C] [Min]

-30 °C

Medium temperature range [°F] [Max]

356 °F

Medium temperature range [°F] [Min]

-22 °F

Operation

Piston (angle)

Orifice size [mm]

25 mm

Packing format

Multi pack

Product group

Externally operated valves

Product name

Angle-seat ext operated valve

Quantity per packing format

4 pc

Seal Material

PTFE

Type

AV210C
