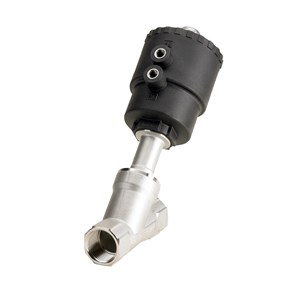

VAN GÓC MỞ RỘNG AV210B C/N 042N4451

Gross weight

1.03 kg

Net weight

0.93 kg

EAN

5702423194438

Ambient temperature range [°C] [Max]

60 °C

Ambient temperature range [°C] [Min]

-30 °C

Ambient temperature range [°F] [Max]

140 °F

Ambient temperature range [°F] [Min]

-22 °F

Body material

Stainless steel

Closing

Against flow

Connection Internal/External

Internal

Connection size [in]

1/2

Connection type

G

Control head diameter [mm]

50 mm

Control pressure range [bar] [Max]

10 bar

Control pressure range [bar] [Min]

4 bar

Control pressure range [psig] [Max]

145 psig

Control pressure range [psig] [Min]

58 psig

Cv value [gal/min]

6.5 gal/min

Differential pressure [bar] [Max]

16 bar

Differential pressure [bar] [Min]

0 bar

Function

NC

Kv value [m³/h]

5.7 m3/h

Max. test pressure [bar]

37.5 bar

Max. test pressure [psig]

544 psig

Max. Working Pressure [bar]

25 bar

Max. Working Pressure [psig]

363 psig

Medium temperature range [°C] [Max]

180 °C

Medium temperature range [°C] [Min]

-30 °C

Medium temperature range [°F] [Max]

356 °F

Medium temperature range [°F] [Min]

-22 °F

Operation

Piston (angle)

Orifice size [mm]

15 mm

Packing format

Multi pack

Product group

Externally operated valves

Product name

Angle-seat ext operated valve

Quantity per packing format

8 pc

Seal Material

PTFE

Type

AV210B
