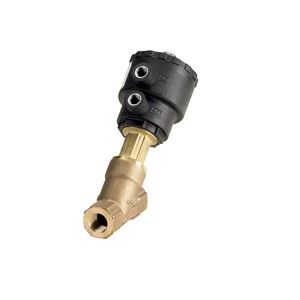

VAN GÓC MỞ RỘNG AV210D C/N 042N4435

Gross weight

4.15 kg

Net weight

3.65 kg

EAN

5702423194407

Ambient temperature range [°C] [Max]

60 °C

Ambient temperature range [°C] [Min]

-30 °C

Ambient temperature range [°F] [Max]

140 °F

Ambient temperature range [°F] [Min]

-22 °F

Body material

Bronze

Closing

Against flow

Connection Internal/External

Internal

Connection size [in]

1 1/2

Connection type

G

Control head diameter [mm]

90 mm

Control pressure range [bar] [Max]

8 bar

Control pressure range [bar] [Min]

5 bar

Control pressure range [psig] [Max]

116 psig

Control pressure range [psig] [Min]

72.5 psig

Cv value [gal/min]

53.1 gal/min

Differential pressure [bar] [Max]

16 bar

Differential pressure [bar] [Min]

0 bar

Function

NO

Kv value [m³/h]

46 m3/h

Max. test pressure [bar]

24 bar

Max. test pressure [psig]

348 psig

Max. Working Pressure [bar]

16 bar

Max. Working Pressure [psig]

232 psig

Medium temperature range [°C] [Max]

180 °C

Medium temperature range [°C] [Min]

-30 °C

Medium temperature range [°F] [Max]

356 °F

Medium temperature range [°F] [Min]

-22 °F

Operation

Piston (angle)

Orifice size [mm]

40 mm

Packing format

Multi pack

Product group

Externally operated valves

Product name

Angle-seat ext operated valve

Quantity per packing format

4 pc

Seal Material

PTFE

Type

AV210D
