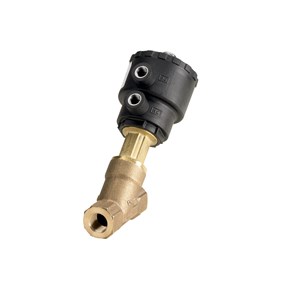

VAN GÓC MỞ RỘNG AV210E C/N 042N4411

Gross weight

6.89 kg

Net weight

6.47 kg

EAN

5702423194339

Ambient temperature range [°C] [Max]

60 °C

Ambient temperature range [°C] [Min]

-30 °C

Ambient temperature range [°F] [Max]

140 °F

Ambient temperature range [°F] [Min]

-22 °F

Body material

Bronze

Closing

Against flow

Connection Internal/External

Internal

Connection size [in]

2

Connection type

G

Control head diameter [mm]

110 mm

Control pressure range [bar] [Max]

8 bar

Control pressure range [bar] [Min]

4 bar

Control pressure range [psig] [Max]

116 psig

Control pressure range [psig] [Min]

58 psig

Cv value [gal/min]

77.4 gal/min

Differential pressure [bar] [Max]

10 bar

Differential pressure [bar] [Min]

0 bar

Function

NC

Kv value [m³/h]

67 m3/h

Max. test pressure [bar]

24 bar

Max. test pressure [psig]

348 psig

Max. Working Pressure [bar]

16 bar

Max. Working Pressure [psig]

232 psig

Medium temperature range [°C] [Max]

180 °C

Medium temperature range [°C] [Min]

-30 °C

Medium temperature range [°F] [Max]

356 °F

Medium temperature range [°F] [Min]

-22 °F

Operation

Piston (vertical)

Orifice size [mm]

50 mm

Packing format

Single pack

Product group

Externally operated valves

Product name

Angle-seat ext operated valve

Quantity per packing format

1 pc

Seal Material

PTFE

Type

AV210E
