PHỤ TÙNG VAN DANFOSS SOLENOID COIL AM110C 110V C/N 042N0845

Mã sản phẩm: 042N0845

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

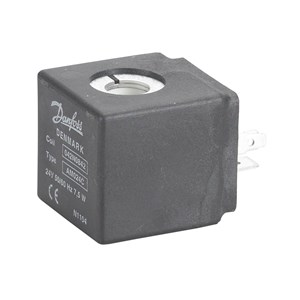

PHỤ TÙNG VAN DANFOSS SOLENOID COIL AM110C 110V C/N 042N0845

Type: AM110C, Coil connection: DIN Spade, Frequency [Hz]: 50/60 Hz, Power consumption [W] 60Hz: 5.5, Power consumption [W] 50Hz: 7.5

Gross weight	0.11 kg
Net weight	0.1 kg
EAN	5702423049943
Actuator size	9 mm
Ambient temperature range [°C] [Max]	50 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	122 °F
Ambient temperature range [°F] [Min]	-40 °F
Coil connection	DIN Spade
Coil design standard	VDE 0580
Coil fastening	Finger screw
Coil winding insulation class	Class H to IEC 85
Colour	Black
Duty rating	Continuous
Electrical connection	DIN Spade
Electrical connection size	6.3 mm x 0.8 mm
Electrical connection standard	EN175301-803
Electrical connector	3 x spades
Enclosure rating IP	IP00
Frequency [Hz]	50/60 Hz
Packing format	Multi pack
Parts Program name	EV210A EV220A EV310A
Power consumption 50Hz [VA]	14 VA
Power consumption 60Hz [VA]	11 VA
Power consumption [W] 50Hz	7.5 W
Power consumption [W] 60Hz	5.5 W
Product accessories	Solenoid coil accessories
Product group	Solenoid valves
Product name	Solenoid coil
Quantity per packing format	24 pc
Serviceable	No
Supply voltage 50Hz Max [V]	110 V
Supply voltage 60Hz Max [V]	110 V
Type	AM110C
Type designation	AM110C
