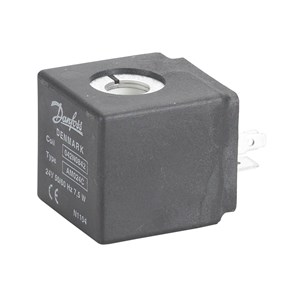

PHỤ TÙNG VAN DANFOSS SOLENOID COIL AM230C 230V C/N 042N0840

Gross weight

0.12 kg

Net weight

0.1 kg

EAN

5702423049844

Actuator size

9 mm

Ambient temperature range [°C] [Max]

50 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

122 °F

Ambient temperature range [°F] [Min]

-40 °F

Coil connection

DIN Spade

Coil design standard

VDE 0580

Coil fastening

Finger screw

Coil winding insulation class

Class H to IEC 85

Colour

Black

Duty rating

Continuous

Electrical connection

DIN Spade

Electrical connection size

6.3 mm x 0.8 mm

Electrical connection standard

EN175301-803

Electrical connector

3 x spades

Enclosure rating IP

IP00

Frequency [Hz]

50/60 Hz

Packing format

Multi pack

Parts Program name

EV210A
EV220A
EV310A

Power consumption 50Hz [VA]

18 VA

Power consumption 60Hz [VA]

13 VA

Power consumption [W] 50Hz

9.5 W

Power consumption [W] 60Hz

6.5 W

Product accessories

Solenoid coil accessories

Product group

Solenoid valves

Product name

Solenoid coil

Quantity per packing format

24 pc

Serviceable

No

Supply voltage 50Hz Max [V]

230 V

Supply voltage 60Hz Max [V]

230 V

Supply voltage [V] a.c.

230 V

Supply voltage [V] AC

230 V

Type

AM230C

Type designation

AM230C
