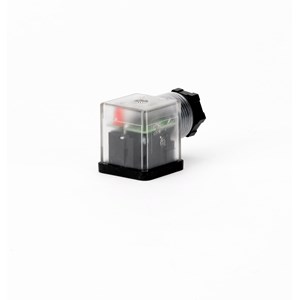

PHỤ TÙNG VAN DANFOSS 018F Coil Type B/018Z Coil Type B/042N Coil Type B C/N 042N0263

Gross weight

0.03 kg

Net weight

0.03 kg

EAN

5702423205882

Ambient temperature range [°C] [Max]

90 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

194 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

CE

Body type

Translucent

Cable diameter [in] [Max]

0.32 in

Cable diameter [in] [Min]

0.24 in

Cable diameter [mm] [Max]

8 mm

Cable diameter [mm] [Min]

6 mm

Cable holder material

PA6

Conductor size, max. [mm2]

1.5 mm2

Contact material

CuZn (Sn plated)

Contact resistance max. [mOhm]

15 mOhm

Contacts

2 + PE

Electrical connection form

Form A

Electrical connection standard

EN 175301-803

Enclosure rating IP

IP65

Gasket material

NBR

Gasket type

Profiled

LED colour

Red

Operating current max. [A]

16 A

Packing format

Multi pack

Power consumption, max. [mA]

5 mA

Product group

Solenoid coil accessories

Product name

Cable plug

Quantity per packing format

100 pc

Supply voltage [V] a.c.

24 V

Supply voltage [V] AC

24 V

Supply voltage [V] DC

24 V

Tolerance

± 10%

Tolerance +/- [%]

10 %

Type

Spare part

Type designation

Cable plug

Used for product

018F Coil Type B
018Z Coil Type B
042N Coil Type B
