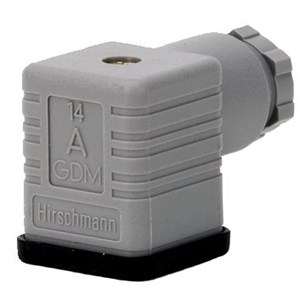

PHỤ TÙNG VAN DANFOSS 018F Coil Type B/018Z Coil Type B/042N Coil Type B C/N 042N0156

Gross weight

0.03 kg

Net weight

0.03 kg

EAN

5702423012183

Ambient temperature range [°C] [Max]

80 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

176 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

CE

Body material

PA6 + 30% GF

Body type

Opaque

Cable diameter [in] [Max]

0.35 in

Cable diameter [in] [Min]

0.24 in

Cable diameter [mm] [Max]

9 mm

Cable diameter [mm] [Min]

6 mm

Cable holder material

PA6

Cable properties

Ø4.5 MM - Ø11 MM

Colour

Grey

Conductor size, max. [mm2]

1.5 mm2

Contact material

CuZn (Cu/Sn plated)

Contact resistance max. [mOhm]

4 mOhm

Contacts

2 + PE

Electrical connection form

Form A

Electrical connection size

Pg 11

Electrical connection standard

DIN EN 175301-803A

Enclosure rating IP

IP65

Gasket material

NBR

Gasket type

Profiled

Operating current max. [A]

16 A

Packing format

Multi pack

Plug type

GDM 2011 J

Product group

Solenoid coil accessories

Product name

Cable plug

Quantity per packing format

100 pc

Supply voltage [V] a.c.

250 V

Supply voltage [V] AC

250 V

Supply voltage [V] DC

250 V

Terminal block material

PA6 + 30% GF

Type

Spare part

Type designation

Cable plug

Used for product

018F Coil Type B
018Z Coil Type B
042N Coil Type B
