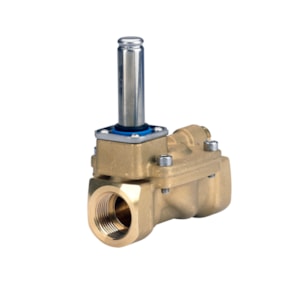

VAN ĐIỆN TỪ DANFOSS EV220B C/N 032U7120
Type: EV220B, Function: NC, Connection size [in]: 3/4, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 9.250, Kv value [m³/h]: 8.000, Seal Material: EPDM
Gross weight |
0.92 kg |
Net weight |
0.86 kg |
EAN |
5702423009510 |
Actuator |
B |
Actuator size |
13.5 mm |
Actuator size [in] |
0.53 in |
Actuator system [mm] |
13.5 mm |
Ambient temperature max. [°C] |
80 °C |
Ambient temperature max. [°F] |
176 °F |
Approval |
ACS |
Body material |
Brass |
Connection Internal/External |
Internal |
Connection material |
Brass |
Connection size [in] |
3/4 |
Connection standard |
ISO 228-1 |
Connection type |
G |
Cv value [gal/min] |
9.25 gal/min |
Differential pressure [bar] [Max] |
16 bar |
Differential pressure [bar] [Min] |
0.3 bar |
Differential pressure [psi] [Max] |
232 psi |
Differential pressure [psi] [Min] |
4.35 psi |
Est. time to open, water [ms] |
40 ms |
Flow direction |
Single-flow |
Flow direction indicator |
Embossed 1-way arrow |
Fluid Group |
I |
Function |
NC |
Kv value [m³/h] |
8 m3/h |
Max media viscosity [cSt] |
50 cSt |
Max. test pressure [bar] |
24 bar |
Max. test pressure [psig] |
348 psig |
Max. Working Pressure [bar] |
16 bar |
Max. Working Pressure [psig] |
232 psig |
Media recommendations |
Water |
Media tolerance comments |
Neutral media |
Medium temperature range [°C] [Max] |
120 °C |
Medium temperature range [°C] [Min] |
-30 °C |
Medium temperature range [°F] [Max] |
248 °F |
Medium temperature range [°F] [Min] |
-22 °F |
Number of ways |
2/2 |
Open/close equalizing orifice |
Optional Equalization orifice |
Operation |
Servo-operated (diaphragm) |
Orifice size [mm] |
20 mm |
Orifice size fraction [in] |
3/4 in |
Packing format |
Multi pack |
Parts Program name |
EV220B 15 - 50 |
Product accessories |
Solenoid valve accessories |
Product group |
Solenoid valves |
Product name |
Solenoid valve |
Quantity per packing format |
24 pc |
Seal Material |
EPDM |
Serviceable |
Solenoid valve spare parts |
Specification key |
EV220B 20B G 34E NC000 |
Type |
EV220B |
Type designation |
EV220B 20 |
Valve operation |
SERVO-DIAPHRAGM |
