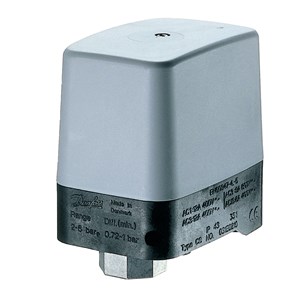

CÔNG TẮC ÁP SUẤT DANFOSS CS 7-20 BAR C/N 031E025566

Gross weight

0.51 kg

Net weight

0.44 kg

EAN

5702423208821

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-20 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-4 °F

Approval

CE
EAC
LVD
RoHS
TYSK

Contact function

TPST

Contact rating

AC3=12 A, 220 - 415 V
AC3=9 A, 600 V
DC13=2 A, 220 V
DC14=2 A, 220 V

Diff.@Max. range setting [bar] [Max]

7 bar

Diff.@Max. range setting [bar] [Min]

3.5 bar

Diff.@Min. range setting [bar] [Max]

3.5 bar

Diff.@Min. range setting [bar] [Min]

2 bar

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 16

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

Enclosure rating IP

IP55

Max. test pressure [bar] Pe

32 bar

Max. test pressure [psig]

464 psig

Max. Working Pressure [bar]

20 bar

Max. Working Pressure [psig]

290 psig

Packing format

Multi pack

Pressure connection size

1/2

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure range category

High pressure

Pressure sensing element

Diaphragm

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

30 pc

Regulation range [bar] Pe [Max]

20 bar

Regulation range [bar] Pe [Min]

7 bar

Regulation range [psig] Pe [Max]

290.1 psig

Regulation range [psig] Pe [Min]

101.5 psig

Reset function

Auto

Serviceable

No

Type

CS
