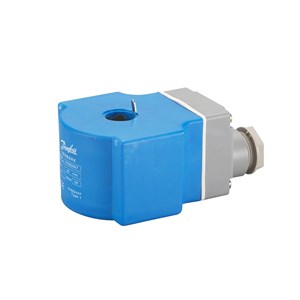

PHỤ TÙNG VAN DANFOSS SOLENOID COIL 24V C/N 018Z6987

Gross weight

0.66 kg

Net weight

0.62 kg

EAN

5702423056323

Actuator size

13.5 mm

Ambient temperature range [°C] [Max]

50 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

122 °F

Ambient temperature range [°F] [Min]

-40 °F

Cable diameter [mm] [Max]

11 mm

Cable diameter [mm] [Min]

6 mm

Coil connection

Connection box

Coil fastening

Nut and snap

Coil type

I

Colour

Blue

Conductor area [mm2]

0.75 - 1.5 mm2

Electrical connection

Terminal box

Electrical connection size

Pg 13.5

Electrical connector

Screwed cable entry

Enclosure rating IP

IP00

Enclosure rating Nema (~)

0

Packing format

Multi pack

Parts Program name

EV260B

Power consumption [W] DC

23 W

Product accessories

Solenoid coil accessories

Product group

Solenoid valves

Product name

Solenoid coil

Quantity per packing format

25 pc

Rel. Humidity [% RH] [Max]

97 %

Rel. Humidity [% RH] [Min]

0 %

Rel. Humidity conditions

Non-condensation

Serviceable

No

Supply voltage [V] DC

24 V

Type

BK024D

Type designation

BK024D
