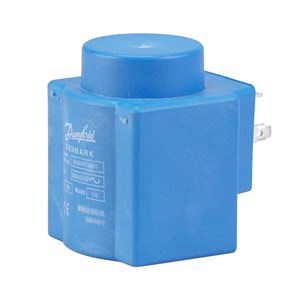

PHỤ TÙNG VAN DANFOSS COIL BY240CS 16W 230V - C/N 018F7658

Mã sản phẩm: 018F7658

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

PHỤ TÙNG VAN DANFOSS COIL BY240CS 16W 230V - C/N 018F7658

Electrical connection: DIN Spade, Supply voltage [V] AC: 208 - 240, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00

Actuator size	13.5 mm
Ambient temperature range [°C] [Max]	50 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	120 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	LLC CDC TYSK - cURus - CE - EAC - UKCA
Coil connection	DIN Spade
Coil design standard	VDE 0580
Coil fastening	Clip-on
Coil winding insulation class	Class H to IEC 85
Colour	Blue
Compliance	EN 60730-1 - UL 429
Electrical connection	DIN Spade
Electrical connection size	6.3 mm x 0.8 mm
Electrical connection standard	EN175301-803
Electrical connector	3 x spades
Enclosure rating IP	IP00
Frequency [Hz]	50/60 Hz
Further information	UL approved coil
Packing format	Multi pack
Parts Program name	EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV250B EV251B
Power consumption 50Hz [VA]	32 VA
Power consumption 60Hz [VA]	28 VA
Power consumption [W] 50Hz	16 W
Power consumption [W] 60Hz	14 W
Product accessories	Solenoid coil accessories
Product group	Solenoid valves
Product name	Solenoid coil
Quantity per packing format	50 pc
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [Max]	97 %
Rel. Humidity [% RH] [Min]	0 %
Rel. Humidity conditions	Non-condensation
Serviceable	No
Spare part number	018F7658
Supply voltage 50Hz Max [V]	230 V
Supply voltage 60Hz Max [V]	240 V
Supply voltage 60Hz Min [V]	208 V
Supply voltage [V] AC [Max]	240 V
Supply voltage [V] AC [Min]	208 V
Type	BY240CS
Type designation	BY240CS
UL approval file name	MH29671
