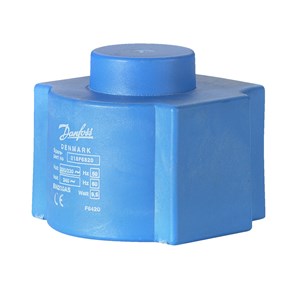

PHỤ TÙNG VAN DANFOSS COIL BN024DS 20W 24DVC - C/N 018F6968

Mã sản phẩm: 018F6968

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

PHỤ TÙNG VAN DANFOSS COIL BN024DS 20W 24DVC - C/N 018F6968

Product details

Actuator size	13.5 mm
Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	120 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CE EAC LLC CDC TYSK UKCA cURus
China RoHS compliance	Out of scope
Coil connection	DIN Spade
Coil design standard	VDE 0580
Coil fastening	Clip-on
Coil type	I
Coil winding insulation class	Class H to IEC 85
Colour	Blue
Compliance	EN 60730-1
Duty rating	Continuous
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	DIN Spade
Electrical connection size	6.3 mm x 0.8 mm
Electrical connection standard	EN175301-803
Electrical connector	3 x spades
Enclosure rating IP	IP00
EU RoHS compliance	Out of scope
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Packing format	Multi pack
Parts Program name	EV210B EV212B EV215B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV225B EV245B
Power consumption [W] DC	20 W
Product accessories	Solenoid coil accessories
Product group	Solenoid valves
Product Name Description	Solenoid coil
Quantity per packing format	24 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]	97 %
Rel. Humidity [% RH] [min]	0 %
Rel. Humidity conditions	Non-condensation
SCIP dossier no.	23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name	Solenoid coils
Serviceable	No
Spare part number	018F6968
Supply voltage [V] DC	24 V
Supply voltage [V] DC	24 V
Type	BN024DS
Type designation	BN024DS
UK RoHS compliance	Out of scope
