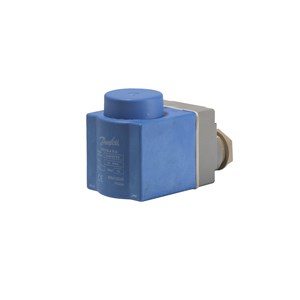

PHỤ TÙNG VAN DANFOSS SOLENOID COIL C/N 018F6756

Gross weight

0.34 kg

Net weight

0.31 kg

EAN

5702428033626

Actuator size

13.5 mm

Ambient temperature range [°C] [Max]

50 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

120 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

LLC CDC TYSK

Cable diameter [mm] [Max]

11 mm

Cable diameter [mm] [Min]

6 mm

Coil connection

Connection box

Coil design standard

VDE 0580

Coil fastening

Clip-on

Coil winding insulation class

Class H to IEC 85

Colour

Blue

Compliance

EN 60730-1

Conductor area [mm2]

0.75 - 1.5 mm2

Duty rating

Continuous

Electrical connection

Terminal box

Electrical connection size

Pg 13.5

Enclosure rating IP

IP67

Packing format

Multi pack

Parts Program name

EV210B
EV212B
EV220B 15 - 50
EV220B 6 - 22
EV220B 65 - 100
EV222B
EV224B
EV227B
EV250B
EV251B
EV258B

Power consumption [W] DC

15 W

Product accessories

Solenoid coil accessories

Product group

Solenoid valves

Product name

Solenoid coil

Quantity per packing format

32 pc

Rel. Humidity [% RH] [Max]

100 %

Rel. Humidity [% RH] [Min]

0 %

Serviceable

No

Spare part number

018F6756

Supply voltage [V] DC

12 V

Type

BE012DS

Type designation

BE012DS
