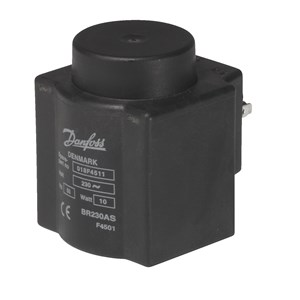

PHỤ TÙNG VAN DANFOSS SOLENOID COIL 220V C/N 018F4520

Gross weight

0.26 kg

Net weight

0.18 kg

EAN

5702428457217

Actuator size

13.5 mm

Ambient temperature range [°C] [Max]

40 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

104 °F

Ambient temperature range [°F] [Min]

-40 °F

Coil connection

DIN Spade

Coil design standard

VDE 0580

Coil fastening

Clip-on

Coil winding insulation class

Class H to IEC 85

Colour

Black

Electrical connection

DIN Spade

Electrical connection size

6.3 mm x 0.8 mm

Electrical connection standard

EN175301-803

Electrical connector

3 x spades

Enclosure rating IP

IP65

Enclosure rating Nema (~)

4

Frequency [Hz]

60 Hz

Further information

For steam applications

Packing format

Multi pack

Parts Program name

EV215B
EV225B
EV245B

Power consumption 60Hz [VA]

19 VA

Power consumption [W] 60Hz

12 W

Product accessories

Solenoid coil accessories

Product group

Solenoid valves

Product name

Solenoid coil

Quantity per packing format

50 pc

Rel. Humidity [% RH] [Max]

100 %

Rel. Humidity [% RH] [Min]

0 %

Serviceable

No

Supply voltage 60Hz Max [V]

220 V

Supply voltage [V] AC

220 V

Type

BQ220BS

Type designation

BQ220BS
