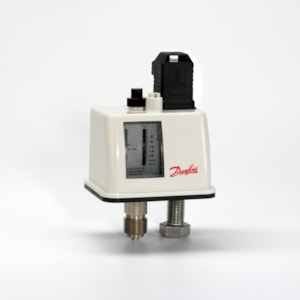

CÔNG TẮC ÁP SUẤT BCP4H DANFOSS 1-10 BAR C/N 017B0042

Gross weight

0.61 kg

Net weight

0.54 kg

EAN

5702423248131

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-20 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-4 °F

Approval

CE
EAC
EMCD
LVD
PED
RoHS
TYSK
TÜV

Approval file name

TÜV .SDWFS/SDBFS .15-335

Burst pressure [bar]

37.5 bar

Contact function

SPDT gold

Contact load type

A

Contact rating

AC15=1 A, 250 V
AC1=6 A, 250 V
DC13=10 W, 250 V

Differential [bar]

0.45 bar

Differential [psi]

6.5 psi

Electrical conn. Male/Female

Female

Electrical connection

DIN-plug

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803

Electrical spec. standard

EN 60947-4/-5

Enclosure rating IP

IP65

Max. test pressure [bar] Pe

27.5 bar

Max. test pressure [psig]

399 psig

Max. Working Pressure [bar]

25 bar

Max. Working Pressure [psig]

360 psig

Packing format

Multi pack

Pressure connection size

1/2

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

9 pc

Regulation range [bar] Pe [Max]

10 bar

Regulation range [bar] Pe [Min]

1 bar

Regulation range [psig] Pe [Max]

145.04 psig

Regulation range [psig] Pe [Min]

14.5 psig

Reset function

Manual Max

Serviceable

No

Type

BCP4H
