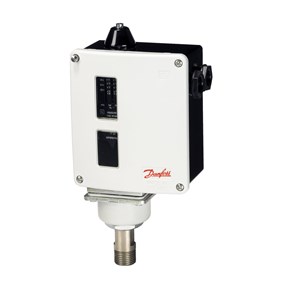

CÔNG TẮC ÁP SUẤT DANFOSS RT116 1-10 BAR - C/N 017-520366

Mã sản phẩm: 017-520366
Thương hiệu: Danfoss
Giá thị trường: 4.700.000 đ
Tiết kiệm: 940.000 đ (20%)
Giá bán: 3.760.000 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CÔNG TẮC ÁP SUẤT DANFOSS RT116 1-10 BAR - C/N 017-520366

Reset function: Auto, Contact function: SPDT, Regulation range [psig] Pe: 14.50 - 145.00, Regulation range [bar] Pe: 1.00 - 10.00, Pressure connection size: 3/8, Pressure connection type: G, Pressure Male/Female: Male.

Gross weight

0.98 kg

Net weight

0.89 kg

EAN

5702423120604

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-50 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-58 °F

Approval

BV
CCC
CE
DNV
EAC
GL
KR
LR
LVD
NKK
PZH
RINA
RMRS
RoHS
RoHS China
TYSK
CMIM

Contact function

SPDT

Contact rating

AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V

Differential [bar] [Max]

1.3 bar

Differential [bar] [Min]

0.33 bar

Differential [psi] [Max]

18.9 psi

Differential [psi] [Min]

4.8 psi

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

2xPg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A

EN 60947 wiring properties

Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2

Enclosure rating IP

IP66

Max. test pressure [bar] Pe

25 bar

Max. test pressure [psig]

363 psig

Max. Working Pressure [bar]

22 bar

Max. Working Pressure [psig]

320 psig

Packing format

Multi pack

Pressure connection size

3/8

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product family name

RT Pressure switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

15 pc

Regulation range [bar] Pe [Max]

10 bar

Regulation range [bar] Pe [Min]

1 bar

Regulation range [psig] Pe [Max]

145 psig

Regulation range [psig] Pe [Min]

14.5 psig

Reset function

Auto

Serviceable

Contact systems

Type

RT116
