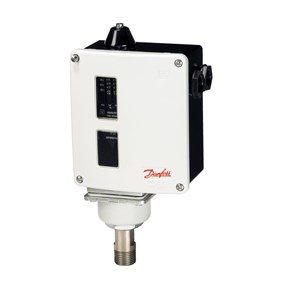

CÔNG TẮC ÁP SUẤT DANFOSS RT30AW 1-10 BAR - C/N 017-518766

Gross weight

1.03 kg

Net weight

0.92 kg

EAN

5702423120482

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

CCC
CE
EAC
GL
LVD
PED
PZH
RMRS
RoHS
RoHS China
TYSK
TÜV

Burst pressure [bar]

88 bar

Contact function

SPDT

Contact rating

AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V

Differential [bar]

0.8 bar

Differential [psi]

11.6 psi

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

2xPg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A

EN 60947 wiring properties

Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2

Enclosure rating IP

IP66

Max. test pressure [bar] Pe

25 bar

Max. test pressure [psig]

363 psig

Max. Working Pressure [bar]

22 bar

Max. Working Pressure [psig]

320 psig

Packing format

Multi pack

Pressure connection size

1/2

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product family name

RT Pressure switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

15 pc

Refrigerants

R11
R12
R123
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R507C
R717

Regulation range [bar] Pe [Max]

10 bar

Regulation range [bar] Pe [Min]

1 bar

Regulation range [psig] Pe [Max]

145 psig

Regulation range [psig] Pe [Min]

14.5 psig

Reset function

Auto

Serviceable

Contact systems

Type

RT30AW
