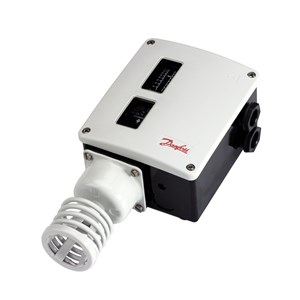

CÔNG TẮC NHIỆT ĐỘ DANFOSS RT34 25-15°C C/N 017-511866

Gross weight

0.91 kg

Net weight

0.8 kg

EAN

5702428519182

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-50 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-58 °F

Approval

CCC
CE
EAC
LVD
PZH
RMRS
RoHS
RoHS China
TYSK

Charge type

Adsorption

Contact function

SPDT

Contact rating

AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V

Diff. @ Max. range setting[°C] [Max]

12 °C

Diff. @ Max. range setting[°C] [Min]

2 °C

Diff. @ Min. range setting[°C] [Max]

10 °C

Diff. @ Min. range setting[°C] [Min]

2 °C

Differential type

Adjustable

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

2xPg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A

EN 60947 wiring properties

Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2

Enclosure rating IP

IP66

Max. sensor temperature [°C]

100 °C

Max. sensor temperature [°F]

212 °F

Packing format

Multi pack

Product accessories

Switches accessories

Product description

Thermostat

Product family name

RT thermostat

Product group

Switches and thermostats

Product name

Thermostat

Quantity per packing format

15 pc

Reset function

Auto

Sensor type

Room sensor

Serviceable

Contact systems

Temperature range [°C] [Max]

15 °C

Temperature range [°C] [Min]

-25 °C

Temperature range [°F] [Max]

59 °F

Temperature range [°F] [Min]

-11 °F

Type

RT34
