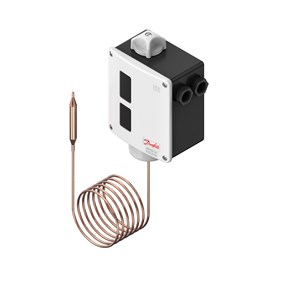

CÔNG TẮC NHIỆT ĐỘ DANFOSS RT13 - C/N 017-509766

Gross weight

0.968 Kg

Net weight

0.856 Kg

Volume

2.783 Liter

EAN

5702428519267

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-50 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-58 °F

Approval

CCC ; CE ; EAC ; GL ; LLC CDC EURO-TYSK ; LVD ; NKK ; PZH ; RMRS ; RoHS ; RoHS China ; TYSK ; UKCA

Cap. tube length fraction [in]

78 3/4 in

Capillary tube length [mm]

2000 mm

Charge type

State Vapour

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=3 A, 400 V
AC1=10 A, 400 V
AC3=4 A, 400 V
DC13=12 W, 220 V
LR=28 A, 400 V

Diff. @ Max. range setting[°C] [max]

3 °C

Diff. @ Max. range setting[°C] [min]

1 °C

Diff. @ Min. range setting[°C] [max]

6 °C

Diff. @ Min. range setting[°C] [min]

1.5 °C

Differential type

Adjustable

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

2xPg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

EN 60947 electrical properties

Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A

EN 60947 wiring properties

Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2

Enclosure rating IP

IP66

EU RoHS compliance

Yes

EU RoHS exemption clause

No

In scope of WEEE and contain batteries

No

Max. sensor temperature [°C]

150 °C

Max. sensor temperature [°F]

302 °F

Packing format

Multi pack

Product accessories

Switches accessories

Product description

Thermostat

Product group

Switches and thermostats

Product Name Description

Thermostat

Quantity per packing format

15 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

c4c20ce6-4a07-4caa-9394-1e7d8b13ffec

Sensor size (Ø x L) [in]

3/8 x 3 1/8 in

Sensor size (Ø x L) [mm]

9.5 x 80 mm

Sensor type

Remote bulb

Serviceable

Contact systems

Temperature range [°C] [max]

0 °C

Temperature range [°C] [min]

-30 °C

Temperature range [°F] [max]

32 °F

Temperature range [°F] [min]

-22 °F

Type

RT13

UK RoHS compliance

Yes
