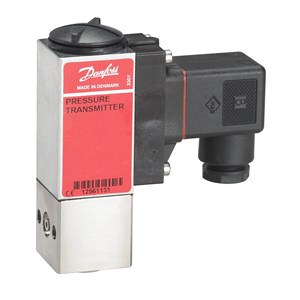

CẢM BIẾN ÁP SUẤT DANFOSS MBS5100 0-4 BAR C/N 060N1052

Gross weight

0.37 Kg

Net weight

0.35 Kg

EAN

5702423059713

+ supply

Pin 1

- common

Pin 2

Accuracy, max. +/- FS [%]

0.3 %

Accuracy, typical +/- FS [%]

0.1 %

Adj. zero point and span

Yes

Ambient temperature range [°C] [Max]

85 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

185 °F

Ambient temperature range [°F] [Min]

-40 °F

Compensated temp. range [°C] [Max]

80 °C

Compensated temp. range [°C] [Min]

0 °C

Compensated temp. range [°F] [Max]

176 °F

Compensated temp. range [°F] [Min]

32 °F

Electrical conn. Male/Female

Male and Female

Electrical connection

DIN-plug

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Flush diaphragm

No

Intrinsically safe

No

Medium temperature range [°C] [Max]

85 °C

Medium temperature range [°C] [Min]

-40 °C

Medium temperature range [°F] [Max]

185 °F

Medium temperature range [°F] [Min]

-40 °F

Non-linearity BFSL ±FS [%]

0.2 %

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Overload pressure max. [bar]

8 bar

Packing format

Multi pack

Pressure connection notes

With flange

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure range [bar] [Max]

4 bar

Pressure range [bar] [Min]

0 bar

Pressure range [kPa] [Max]

400 kPa

Pressure range [kPa] [Min]

0 kPa

Pressure range [psi] [Max]

58.02 psi

Pressure range [psi] [Min]

0 psi

Pressure unit reference

Absolute

Product group

Sensors

Product name

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

12 pc

Response time max. [ms]

4 ms

Specification key

MBS 5100-1621-A6DB04-4

Supply voltage [V] DC [Max]

32 V

Supply voltage [V] DC [Min]

10 V

Test Signal

Pin 3

Type

MBS 5100
