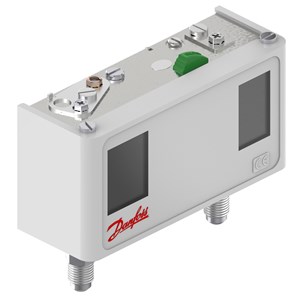

CÔNG TẮC ÁP SUẤT DANFOSS KP15 - C/N 060-126491

Gross weight

0.5 kg

Net weight

0.44 kg

EAN

5702424498092

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [Max]

65 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

149 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

BV
CCC
CE
DNV
GL
LR
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
UKCA

Contact function

SPDT+SPST(NO)

Contact rating

AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V
Terminal D: 50 VA, 400 V

Differential left side [bar] [Max]

4 bar

Differential left side [bar] [Min]

0.7 bar

Differential left side [psi] [Max]

58 psi

Differential left side [psi] [Min]

10 psi

Differential right side [bar]

4 bar

Differential right side [psi]

58 psi

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

Equipment

Further information

Not applicable for liquid line

Lubricants compatibility

Oilfree applications

Max.test press.left side[bar]

20 bar

Max.test press.right side[bar]

35 bar

MWP left side [bar] Pe

17 bar

MWP left side [psig] Pe

245 psig

MWP right side [bar] Pe

35 bar

MWP right side [psig] Pe

510 psig

Oil free refrigerants

R134a
R513A
R515B

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

DIN 8906

Pressure connection type

Flare

Pressure Male/Female

Male

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Dual Pressure Control

Product family name

KP Pressure switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

24 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerant oil compatibility

Oilfree applications
R134a
R513A
R515B

Refrigerants

R113
R1234yf
R1234yz
R1234ze
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R454C
R455A
R507A
R513A
R515B

Regulation left side [bar]Pe [Max]

7.5 bar

Regulation left side [bar]Pe [Min]

-0.2 bar

Regulation left side range Pe

6 inHg - 108 psig

Regulation right side [bar]Pe [Max]

32 bar

Regulation right side [bar]Pe [Min]

8 bar

Regulation right side [psig]Pe [Max]

464 psig

Regulation right side [psig]Pe [Min]

116 psig

Reset function, left side

Auto

Reset function, right side

Manual Max

Serviceable

No

Type

KP15

UL approval file name

E31024

UL approved refrigerants

R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
