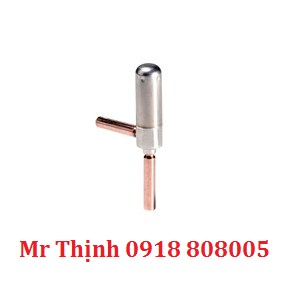

VAN TIẾT LƯU ĐIỆN DANFOSS ETS 6-25 - C/N 034G5035

Gross weight

0.08 Kg

Net weight

0.05 Kg

EAN

5702428825511

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-30 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-22 °F

Approval

CE
CQC
EAC
LLC CDC TYSK
RoHS
UL

Category

Art. 3, par. 3

Compatible Danfoss controllers

EIM 336
EKE 1A
EKE 1B
EKE 1C

Connection material

Copper

Connection type

Solder, ODF

Direction

Angleway

Flow direction

Bi-flow

Fluid Group

II

Full travel time speed [s] [Max]

16 "

Full travel time speed [s] [Min]

6 "

Identical product

034G5030

Inlet size [in]

5/16 in

Inlet size [mm]

7.94 mm

Manual operation option

AST-G service driver
ETS 6 Manual coil

Max. Working Pressure [bar]

47 bar

Max. Working Pressure [psig]

681 psig

MaxOPD [bar]

35 bar

MaxOPD [psig]

507 psig

MOPD[bar/psi]

35 BAR

Motor type

Permanent magnet stepper motor

Orifice size [mm]

2.5 mm

Outlet size [in]

5/16 in

Outlet size [mm]

7.94 mm

Packing format

Single pack

Parts Program name

ETS 6

Product accessories

Stepper valve accessories

Product family name

ETS 6

Product group

Expansion valves

Product name

Electric expansion valve

Quantity per packing format

1 pc

Rated cap. conditions [IMP]

Subcooling=32 ºF
Superheat=32 ºF
tcond=100 ºF
tevap=41 ºF

Rated cap. conditions [SI]

Subcooling=0 ºC
Superheat=0 ºC
tcond=38 ºC
tevap=5 ºC

Rated capacity R134a [kW]

15.3 kW

Rated capacity R134a [TR]

4.35 tons

Rated capacity R22 [kW]

19.6 kW

Rated capacity R22 [TR]

5.57 tons

Rated capacity R404A/R507 [kW]

13.8 kW

Rated capacity R404A/R507 [TR]

3.92 tons

Rated capacity R407C [kW]

20.1 kW

Rated capacity R407C [TR]

5.72 tons

Rated capacity R410A [kW]

23 kW

Rated capacity R410A [TR]

6.54 tons

Refrigerant oil compatibility

All ester oils
All mineral oils

Refrigerant temperature [ºC] [Max]

70 °C

Refrigerant temperature [ºC] [Min]

-30 °C

Refrigerant temperature [ºF] [Max]

158 °F

Refrigerant temperature [ºF] [Min]

-22 °F

Refrigerants

R134a
R22/R407C
R404A/R507
R410A
R290
R32
R448A
R449A
R452A

Serviceable

No

Step mode

2-phase full step
Half step (recommended)
Microstep

System line application

Liquid line

Total steps

480 (half steps)

Type

ETS 6 - 25
