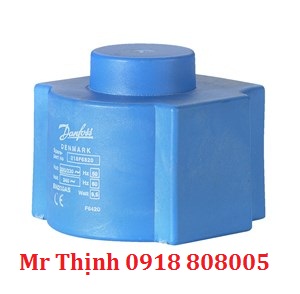

PHỤ TÙNG VAN COIL BN024BS, 22W, 24VAC - C/N 018F6906

Gross weight

0.5 Kg

Net weight

0.496 Kg

Volume

0.54 Liter

EAN

5702428955256

Actuator size

13.5 mm

Ambient temperature range [°C] [max]

50 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

120 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE
EAC
LLC CDC TYSK
UKCA

Cable diameter [mm] [max]

11 mm

Cable diameter [mm] [min]

6 mm

China RoHS compliance

Out of scope

Coil connection

Connection Box

Coil design standard

VDE 0580

Coil fastening

Clip-on

Coil winding insulation class

Class H to IEC 85

Colour

Blue

Compliance

EN 60730-1

Conductor area [mm2]

0.75 - 1.5 mm2

Duty rating

Continuous

EEE category

5 small equipment (any external dimension 50 cm)​

Electrical connection

Terminal box

Electrical connection size

Pg 13.5

Electrical connector

Screwed cable entry

Enclosure rating IP

IP67

EU RoHS compliance

Out of scope

Frequency [Hz]

60 Hz

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Packing format

Multi pack

Power consumption 60Hz [VA]

42 VA

Power consumption [W]

22 W

Power consumption [W] 60Hz

22 W

Product accessories

Solenoid coil accessories

Product group

Solenoid valves

Product Name Description

Solenoid coil

Quantity per packing format

24 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Rel. Humidity [% RH] [max]

100 %

Rel. Humidity [% RH] [min]

0 %

SCIP dossier no.

23785618-b379-4da7-a913-ecd40c8fae6d

SCIP dossier product name

Solenoid coils

Serviceable

No

Spare part number

018F6906

Supply voltage 60Hz Max [V]

24 V

Supply voltage [V] AC

24 V

Type

BN024BS

Type designation

BN024BS

UK RoHS compliance

Out of scope
