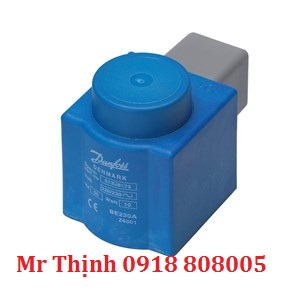

PHỤ TÙNG VAN COIL 12W 24V AC C/N 018F6182

Mã sản phẩm: 018F6182

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

Actuator size	13.5 mm
Ambient temperature range [°C] [Max]	80 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	175 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	LLC CDC TYSK
Coil connection	DIN Spade + Cap
Coil design standard	VDE 0580
Coil fastening	Clip-on
Coil winding insulation class	Class H to IEC 85
Colour	Blue
Compliance	EN 60730-1
Duty rating	Continuous
Electrical connection	DIN Spade
Electrical connection size	6.3 mm x 0.8 mm
Electrical connection standard	EN175301-803
Electrical connector	3 x spades
Enclosure rating IP	IP20
Frequency [Hz]	50 Hz
Packing format	Multi pack
Parts included	Cap
Parts Program name	EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B
Power consumption 50Hz [VA]	21 VA
Power consumption [W] 50Hz	12 W
Product accessories	Solenoid coil accessories
Product Group	Solenoid valves
Product name	Solenoid coil
Product type	BE024AS
Quantity per packing format	50 pc
Rel. Humidity [% RH] [Max]	97 %
Rel. Humidity [% RH] [Min]	0 %
Rel. Humidity conditions	Non-condensation
Serviceable	No
Spare part number	018F6182
Supply voltage 50Hz Max [V]	24 V
Supply voltage [V] a.c.	24 V
Supply voltage [V] AC	24 V
Type designation	BE024AS
