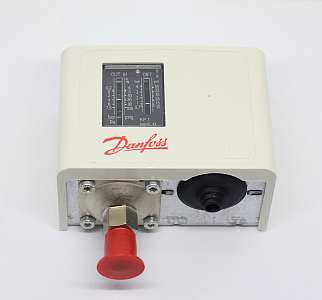

CÔNG TẮC ÁP SUẤT DANFOSS KP1 - C/N 060-110191KP
pressure switch, low pressure
060-110191
Ambient temperature:–40 - +65°C (+80°C for max. 2 hours).
DIN-approved units:–40 - +65°C (+80°C for max. 2 hours).
Max. working pressure = 17 bar
Max. test pressure = 20 bar
Contact load, AC:
AC1: 16 A, 400 V
AC3: 16 A, 400 V
AC15: 10 A, 400 V
Max. starting current (L.R.): 112 A, 400 V
Contact load, DC:
DC13: 12 W, 220 V control current
YPE CODE |
KP1 |
WEIGHT |
0.300 Kg |
AMBIENT TEMP. RANGE |
-25 - 65 °C |
AMBIENT TEMP. RANGE |
-13 - 149 °F |
APPROVAL |
BV, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2, CCC, CE, DNV, EAC, GL, LR, PED, RINA, RMRS |
CONTACT FUNCTION |
SPDT |
CONTACT RATING |
AC1=16 A, 400 V |
CONTACT RATING |
AC15=10 A, 400 V |
CONTACT RATING |
AC3=16 A, 400 V |
CONTACT RATING |
DC13=12 W, 220 V |
CONTACT RATING |
LR 112 A, 400 V |
DIFF. |
0,70 - 4,00 bar |
DIFF. |
10,00 - 58,00 psi |
EAN NO. |
5702428161404 |
ELECTR. CONN. COMMENTS |
Rubber cable gland |
ELECTR. CONN. SIZE |
6-14 mm |
ENCL. |
IP44 |
MAX. TEST PRESSURE |
20,0 bar |
MWP |
17,0 bar |
MWP |
245 psig |
NEMA RATING |
2 |
PACK FORMAT |
Multi pack |
PRESS. CONN. STD. |
DIN 8906 |
PRESS. CONN. TYPE |
Flare - 1/4 in Male |
PRESSURE RANGE CAT. |
Low pressure |
PRESS. SENSING ELEM. |
Bellows |
DESCRIPT. |
Pressure control |
PROD. GROUP |
Switches and thermostats |
PROD. NAME |
Pressure switch |
PACK QTY. |
36 pc |
REFRIGERANT |
HCFC/Non flam HFC |
REG. RANGE |
6 inHg - 108 psig |
REG. RANGE |
-0,20 - 7,50 bar |
RESET |
Auto |
UL APPROVAL FILE |
E31024 |
UL APPROVAL FILE |
MH27572 |
