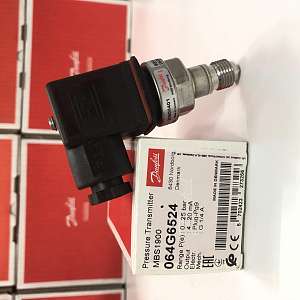

CẢM BIẾN ÁP SUẤT DANFOSS MBS1900 0-25 BAR C/N 064G6524

Mã sản phẩm: 064G6524
Thương hiệu: Danfoss
Giá thị trường: 3.600.000 đ
Tiết kiệm: 720.000 đ (20%)
Giá bán: 2.880.000 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

Gross weight

0.09 Kg

Net weight

0.08 Kg

EAN

5702423273256



+ supply

Pin 1

- common

Pin 2

Accuracy @ ref. temp. ±FS [%]

1 %

Accuracy, typical +/- FS [%]

1 %

Adj. zero point and span

No

Ambient temperature range [°C] [Max]

80 °C

Ambient temperature range [°C] [Min]

-20 °C

Ambient temperature range [°F] [Max]

176 °F

Ambient temperature range [°F] [Min]

-4 °F

Approval

C UR US

Approval comments

UL-873

Compensated temp. range [°C] [Max]

80 °C

Compensated temp. range [°C] [Min]

0 °C

Compensated temp. range [°F] [Max]

176 °F

Compensated temp. range [°F] [Min]

32 °F

Electrical conn. Male/Female

Male and Female

Electrical connection

Plug

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Fault Monitoring Demand

No

Flush diaphragm

No

Intrinsically safe

No

Medium temperature range [°C] [Max]

80 °C

Medium temperature range [°C] [Min]

0 °C

Medium temperature range [°F] [Max]

176 °F

Medium temperature range [°F] [Min]

32 °F

Non-linearity BFSL ±FS [%]

0.5 %

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Overload pressure max. [bar]

75 bar

Overload pressure max. [psi]

1088 psi

Packing format

Multi pack

Pressure connection HEX [mm]

24 mm

Pressure connection notes

A

Pressure connection size

1/4

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [Max]

25 bar

Pressure range [bar] [Min]

0 bar

Pressure range [psi] [Max]

362.59 psi

Pressure range [psi] [Min]

0 psi

Pressure unit reference

Gauge (relative)

Product Group

Sensors

Product name

Pressure transmitter

Product type

MBS 1900

Pulse-snubber

No

Quantity per packing format

20 pc

Reference temperature [°C]

20 °C

Reference temperature [°F]

68 °F

Response time max. [ms]

4 ms

Specification key

MBS 1900-2411-A1AB04-0

Supply voltage [V] DC [Max]

28 V

Supply voltage [V] DC [Min]

9 V

TEB inside CTR ±FS [%]

3 %
