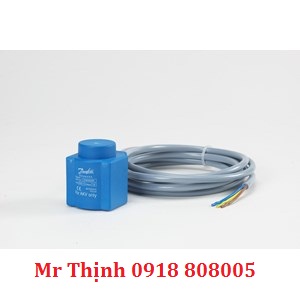

PHỤ TÙNG VAN COIL 18W 220V C/N 018F6288

Mã sản phẩm: 018F6288

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

Actuator size	13.5 mm
Ambient temperature range [°C] [Max]	50 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	120 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	LLC CDC TYSK
Cable diameter [mm]	6.6 mm
Cable length [in]	100 in
Cable length [m]	2.5 m
Coil connection	CABLE
Coil design standard	VDE 0580
Coil fastening	Clip-on
Coil winding insulation class	Class H to IEC 85
Colour	Blue
Compliance	EN 60730-1
Conductor area [mm2]	3 x 0.75 mm2
Duty rating	Continuous
Electrical connection	Cable
Electrical connector	3 core cable
Enclosure rating IP	IP67
Further information	Moulded cable
Packing format	Multi pack
Parts Program name	EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B
Power consumption [W] DC	18 W
Product accessories	Solenoid coil accessories
Product Group	Solenoid valves
Product name	Solenoid coil
Product type	BF230DS
Quantity per packing format	20 pc
Rel. Humidity [% RH] [Max]	100 %
Rel. Humidity [% RH] [Min]	0 %
Serviceable	No
Spare part number	018F6288
Supply voltage [V] DC	230 V
Type designation	BF230DS
