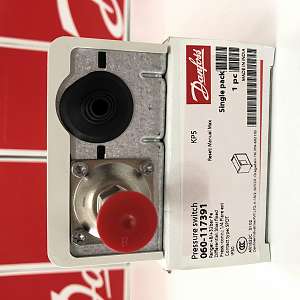

CÔNG TẮC ÁP SUẤT DANFOSS KP5 8-32 BAR C/N 060-117391

Gross weight

0.32 Kg

Net weight

0.29 Kg

EAN

5702423267637

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [Max]

65 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

149 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

BV
CCC
CE
DNV
GL
LR
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2

Contact function

SPDT

Contact rating

AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V

Differential [bar]

3 bar

Differential [psi]

43 psi

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

Max. test pressure [bar] Pe

35 bar

Max. test pressure [psig]

510 psig

Max. Working Pressure [bar]

35 bar

Max. Working Pressure [psig]

510 psig

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

DIN 8906

Pressure connection type

Flare

Pressure Male/Female

Male

Pressure range category

High pressure

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product family name

KP Pressure switch

Product Group

Switches and thermostats

Product name

Pressure switch

Product type

KP5

Quantity per packing format

36 pc

Refrigerants

R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R507A
R513A
R449B
R515B

Regulation range [bar] Pe [Max]

32 bar

Regulation range [bar] Pe [Min]

8 bar

Regulation range [psig] Pe [Max]

464 psig

Regulation range [psig] Pe [Min]

116 psig

Reset function

Manual Max

Serviceable

No

UL approval file name

E31024
