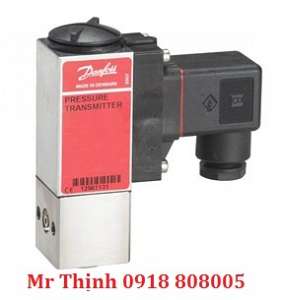

CÔNG TẮC ÁP SUẤT DANFOSS MBC 5100 -0.2 - 1.0 BAR C/N 061B201266

Mã sản phẩm: 061B201266

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

Alarm Signal	Falling
Ambient temperature range [°C] [Max]	85 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	185 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	CCC CE EAC LVD RoHS RoHS China
Burst pressure [bar]	30 bar
Contact function	SPDT
Contact rating	AC15=0.5 A, 250 V DC13=12 W, 125 V
Diff.@Max. range setting [bar]	0.45 bar
Diff.@Min. range setting [bar]	0.3 bar
Electrical conn. Male/Female	Female
Electrical connection	DIN-plug
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Electrical spec. standard	EN 60947-5
Enclosure rating IP	IP65
Factory setting [bar]	0.5 bar
Factory setting [MPa]	0.05 MPa
Max. test pressure [bar] Pe	15 bar
Max. test pressure [psig]	218 psig
Max. Working Pressure [bar]	15 bar
Max. Working Pressure [psig]	220 psig
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Pressure range category	Low pressure
Pressure sensing element	Bellows
Product accessories	Switches accessories
Product description	Pressure Switch
Product Group	Switches and thermostats
Product name	Pressure switch
Product type	MBC 5000
Quantity per packing format	32 pc
Regulation range [bar] Pe [Max]	1 bar
Regulation range [bar] Pe [Min]	-0.2 bar
Regulation range [MPa] Pe [Max]	0.1 MPa
Regulation range [MPa] Pe [Min]	-0.02 MPa
Reset function	Auto
Serviceable	No
Specification key	1011-1CB04
