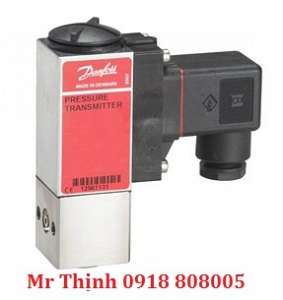

MBC 5100 3641-1CB04 Pressure Control, Range: 5-40bar
Gross weight |
0.3 Kg |
Net weight |
0.25 Kg |
EAN |
5702423244515 |
Ambient temperature range [°C] [Max] |
85 °C |
Ambient temperature range [°C] [Min] |
-10 °C |
Ambient temperature range [°F] [Max] |
185 °F |
Ambient temperature range [°F] [Min] |
14 °F |
Approval |
ABS |
Burst pressure [bar] |
300 bar |
Contact function |
SPDT |
Contact rating |
AC15=0.5 A, 250 V |
Diff.@Max. range setting [bar] |
7 bar |
Diff.@Min. range setting [bar] |
2 bar |
Electrical conn. Male/Female |
Female |
Electrical connection |
DIN-plug |
Electrical connection size |
Pg 11 |
Electrical connection standard |
EN 175301-803-A |
Electrical spec. standard |
EN 60947-5 |
Enclosure rating IP |
IP65 |
Max. test pressure [bar] Pe |
150 bar |
Max. test pressure [psig] |
2176 psig |
Max. Working Pressure [bar] |
150 bar |
Max. Working Pressure [psig] |
2175 psig |
Packing format |
Multi pack |
Pressure connection size |
1/4 |
Pressure connection standard |
ISO 228-1 |
Pressure connection type |
G |
Pressure Male/Female |
Female |
Pressure range category |
High pressure |
Pressure sensing element |
Diaphragm |
Product accessories |
Switches accessories |
Product description |
Pressure Switch |
Product Group |
Switches and thermostats |
Product name |
Pressure switch |
Product type |
MBC 5100 |
Quantity per packing format |
32 pc |
Regulation range [bar] Pe [Max] |
40 bar |
Regulation range [bar] Pe [Min] |
5 bar |
Regulation range [MPa] Pe [Max] |
4 MPa |
Regulation range [MPa] Pe [Min] |
0.5 MPa |
Serviceable |
No |
Specification key |
3641-1CB04 |
