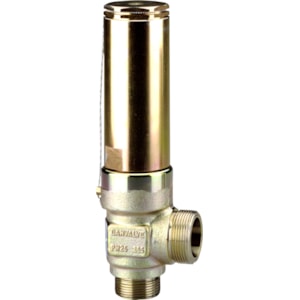

VAN AN TOÀN DANFOSS SFV 25, G, 21 bar - C/N 2416+155

Van An Toàn Danfoss SFV 20, 13 bar

Mã hàng:

2416+150

Van An Toàn Danfoss SFV 20, 21 bar

Mã hàng:

2416+152

Van An Toàn Danfoss SFV 20, 18 bar

Mã hàng:

2416+151

Van An Toàn Danfoss SFV 25, 13 bar

Mã hàng:

2416+153

Van An Toàn Danfoss SFV 25, 18 bar

Mã hàng:

2416+154

Van An Toàn Danfoss SFV 25, 21 bar (TÜV certificate included)

Mã hàng:

2416+165

Gross weight

4.06 Kilogram

Net weight

3.946 Kilogram

Volume

2.361 Liter

EAN

5702428193450

Approval

CE; EAC; TS; UKCA

Certified Coef of Disc

0.48 kg

China RoHS compliance

Out of scope

Comments

0

Connection Internal/External

External

Connection size [in]

1 in

Connection size [mm]

25 mm

Connection standard

ISO 228-1

Connection type

G

Direction

Angleway

EU RoHS compliance

Out of scope

Flow area [in2]

0.643 in²

Flow area [mm2]

415 mm²

Flow diameter [in]

0.906 in

Flow diameter [mm]

23 mm

Fluid Group

1

In scope of WEEE and contain batteries

No

Inlet connection size [in]

1 1/4 in

Lift [mm]

4.5 mm

Nominal diameter

DN 25

Outlet connection size [in]

1 1/2 in

Packing format

Single pack

PED category

IV

Pressure certificate

Danfoss certificate included

Pressure setting [bar]

21 bar

Pressure setting [psig]

305 psig

Product description

Safety Relief Valve

Product group

Safety relief valves

Product Name Description

Safety relief valve

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1234yf; R1234ze(E); R125; R134a; R152a; R170; R22; R227ea; R236fa; R245fa; R290; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R452C; R454A; R454B; R454C; R455A; R463A; R502; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a; R717; R744

Temperature range [°C] [max]

100 °C

Temperature range [°C] [min]

-30 °C

Temperature range [°F] [max]

212 °F

Temperature range [°F] [min]

-22 °F

Type

SFV 25

UK RoHS compliance

Out of scope
