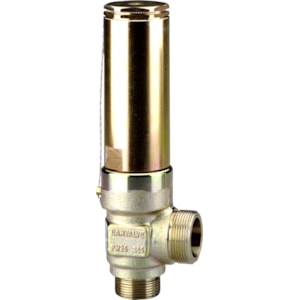

VAN AN TOÀN DANFOSS SFV 25, G, 13 bar - C/N 2416+153
CÁC MÃ TƯƠNG TỰ
|
Van An Toàn Danfoss SFV 20, 13 bar |
Mã hàng: |
2416+150 |
|
Van An Toàn Danfoss SFV 20, 21 bar |
Mã hàng: |
2416+152 |
|
Van An Toàn Danfoss SFV 20, 18 bar |
Mã hàng: |
2416+151 |
|
Van An Toàn Danfoss SFV 25, 18 bar |
Mã hàng: |
2416+154 |
|
Van An Toàn Danfoss SFV 25, 21 bar (Danfoss certificate included) |
Mã hàng: |
2416+155 |
|
Van An Toàn Danfoss SFV 25, 21 bar (TÜV certificate included) |
Mã hàng: |
2416+165 |
Product details
|
Gross weight |
3.992 Kg |
|
Net weight |
3.946 Kg |
|
Volume |
2.284 Liter |
|
EAN |
5702428193474 |
|
Approval |
CE / EAC / TS / UKCA |
|
Certified Coef of Disc |
0.48 kg |
|
Comments |
0 |
|
Connection Internal/External |
External |
|
Connection size [in] |
1 in |
|
Connection size [mm] |
25 mm |
|
Connection standard |
ISO 228-1 |
|
Connection type |
G |
|
Direction |
Angleway |
|
Flow area [in2] |
0.643 in² |
|
Flow area [mm2] |
415 mm² |
|
Flow diameter [in] |
0.906 in |
|
Flow diameter [mm] |
23 mm |
|
Fluid Group |
1 |
|
In scope of WEEE and contain batteries |
No |
|
Inlet connection size [in] |
1 1/4 in |
|
Lift [mm] |
4.5 mm |
|
Nominal diameter |
DN 25 |
|
Outlet connection size [in] |
1 1/2 in |
|
Packing format |
Single pack |
|
PED category |
IV |
|
Pressure certificate |
Danfoss certificate included |
|
Pressure setting [bar] |
13 bar |
|
Pressure setting [psig] |
189 psig |
|
Product description |
Safety Relief Valve |
|
Product group |
Safety relief valves |
|
Product Name Description |
Safety relief valve |
|
Quantity per packing format |
1 pc |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Refrigerants |
R1234yf / R1234ze(E) / R125 / R134a / R152a / R170 / R22 / R227ea / R236fa / R245fa |
|
Temperature range [°C] [max] |
100 °C |
|
Temperature range [°C] [min] |
-30 °C |
|
Temperature range [°F] [max] |
212 °F |
|
Temperature range [°F] [min] |
-22 °F |
|
Type |
SFV 25 |
