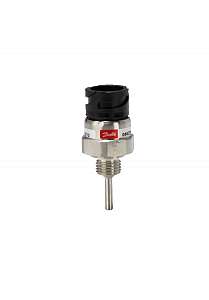

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5260 - C/N 084Z2061

Mã sản phẩm: 084Z2061
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5260 - C/N  084Z2061

084Z2061

The MBT 5260 is a heavy-duty temperature sensor that can be used for controlling cooling water, lubrication oil, hydraulic oil and refrigeration plants within general industry and marine applications.
This temperature sensor is based on a standardized Pt100 or Pt1000 element, which gives a reliable and accurate measurement. The MBT 5260 can also be delivered with NTC/PTC elements on request.
The measuring insert is based on a silicone cable, which makes the sensor very resistant towards vibrations. All parts in contact with the media are made of stainless steel AISI 316 Ti. The MBT 5260 is equipped with a DIN 43650 plug as standard, but can be delivered with M12 or DIN 72585 Bayonet on request

  • For gaseous or liquid media, e.g. air, gas, vapour, water or oil
  • Up to +200° C media temperatures
  • Pt100 or Pt1000 resistance element
  • Can be used with 2- or 3-wire connections
  • Gold plated male and female connector
  • Fixed measuring insert
  • Available with all relevant marine approvals



Characteristic

Value
Type MBT 5260
Weight 0.055 Kg
Ambient temperature max. [°C] 125 °C
Ambient temperature max. [°F] 257 °F
Connection type M
EAN 5702423292295
Enclosure rating IP54
Insertion length [in] 1,18 in
Insertion length [mm] 30 mm
Output signal Ohm
Packing format Multi pack
Process connection Male/Female Male
Process connection size 14x1.5
Process connection size M14 x 1,5
Process connection standard ISO 965
Process connection type M
Protection tube diameter [in] 0,16 in
Protection tube diameter [mm] 4,2 mm
Protection tube material AISI 316 Ti
Quantity per packing format 40 pc
Resistance value 1 x Pt 1000
Sensor elem. resistance [Ohm] 1.000 Ohm
Sensor element [pc] 1 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type PT
Sensor Insert fixed
Temperature Range [°C] -50 - 150 °C
Temperature range [°F] -58 - 302 °F
Tolerance EN 60751 Class B
Type designation MBT 5260-0140-030-580
Wires [pcs] 2 PC



Code no.

Type

Resistance
value

Temp.
Range
[°C]

Ins.
Length
[mm]

Output
sign.

Process
conn.
size

El.
conn.

Wires
[pcs]

084Z2061

MBT 5260

1 x Pt 1000

-50 - 150 °C

30 mm

Ohm

14x1.5, M14 x 1,5

-

2 pc

084Z2065

MBT 5260

1 x Pt 100

-30 - 150 °C

100 mm

Ohm

1/2, G 1/2 A

M12 x 1, M12-4 pin

4 pc

084Z6105

MBT 5260

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

1/4, G 1/4 A

DIN 43650/Pg 9

2 pc

084Z8021

MBT 5260

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 9

2 pc

084Z8033

MBT 5260

1 x Pt 100

-50 - 200 °C

50 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 9

2 pc

084Z8034

MBT 5260

1 x Pt 100

-50 - 200 °C

150 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 9

2 pc

084Z8132

MBT 5260

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z8229

MBT 5260

1 x Pt 100

-50 - 200 °C

50 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc



Type  MBT 5260  Code no.  084Z2061  084Z2065  084Z6105  084Z8021  084Z8033  084Z8034  084Z8132  084Z8229
