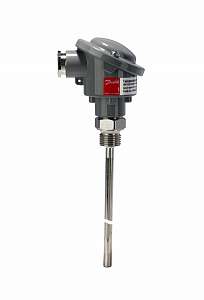

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5252 -C/N 084Z6266

Mã sản phẩm: 084Z6266
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5252 -C/N 084Z6266
MBT 5252, Temperature sensors
The MBT 5252 is a heavy-duty temperature sensor that can be used for controlling cooling water, lubrication oil, hydraulic oil and refrigeration plants within general industry and marine applications.
This temperature sensor is based on a standardized Pt100 or Pt1000 element, which gives a reliable and accurate measurement. The MBT 5252 can be delivered with NTC/PTC elements on request.
If needed, a transmitter (MBT 9110) can be ordered as an integrated part of the sensor. In the low temperature version (-50 °C to +200 °C) the measuring insert is based on a silicone cable, which makes the sensor very resistant towards vibrations.
All parts in contact with the media are made of stainless steel AISI 316 Ti. The MBT 5252 is equipped with a B-head as standard, but can be delivered with B-mini or B-head with screw cap on request.
  • For gaseous or liquid media, e.g. air, gas, vapour, water or oil
  • Up to +400° C media temperatures
  • Available with built-in transmitter
  • Available with all relevant marine approvals





Code no.

Type

Transm.
Setting
range
[°C]

Resistance
value

Temp.
range
[°C]

Ins.
Length
[mm]

Ext.
length
[mm]

Output
sig.
[mA]

Output
sign.

Process
conn.
size

El.
conn.

Wires
[pcs]

084Z6266

MBT 5252

0 - 200 °C

1 x Pt 100

-50 - 200 °C

100 mm

50 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z6275

MBT 5252

-

1 x Pt 100

-50 - 400 °C

200 mm

50 mm

-

Ohm

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z6276

MBT 5252

0 - 400 °C

1 x Pt 100

-50 - 400 °C

50 mm

50 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z6279

MBT 5252

0 - 400 °C

1 x Pt 100

-50 - 400 °C

200 mm

50 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z6285

MBT 5252

0 - 200 °C

1 x Pt 100

-50 - 200 °C

50 mm

50 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z6296

MBT 5252

-

2 x Pt 100

-50 - 200 °C

150 mm

50 mm

-

Ohm

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z7055

MBT 5252

-50 - 50 °C

1 x Pt 100

-50 - 200 °C

150 mm

50 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z7063

MBT 5252

0 - 160 °C

1 x Pt 100

-50 - 200 °C

150 mm

50 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z7087

MBT 5252

-

1 x Pt 100

-50 - 200 °C

300 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z7160

MBT 5252

-

1 x Pt 100

-50 - 200 °C

100 mm

50 mm

-

Ohm

1/2, G 1/2 A

Type B, Type B / Pg 16

4 pc

084Z7272

MBT 5252

0 - 450 °C

1 x Pt 100

-50 - 400 °C

1.100 mm

100 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z8210

MBT 5252

-

1 x Pt 100

-50 - 200 °C

50 mm

50 mm

-

Ohm

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z8211

MBT 5252

-

1 x Pt 100

-50 - 200 °C

100 mm

50 mm

-

Ohm

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z8212

MBT 5252

-

1 x Pt 100

-50 - 200 °C

150 mm

50 mm

-

Ohm

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z8213

MBT 5252

-

1 x Pt 100

-50 - 200 °C

200 mm

50 mm

-

Ohm

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z8214

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

50 mm

50 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z8215

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

100 mm

50 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z8216

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

150 mm

50 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z8217

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

200 mm

50 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z8228

MBT 5252

-

1 x Pt 100

-50 - 200 °C

100 mm

50 mm

-

Ohm

24x2, M24 x 2

Type B, Type B / Pg 16

2 pc

084Z8230

MBT 5252

-

1 x Pt 100

-50 - 200 °C

50 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z8231

MBT 5252

-

1 x Pt 100

-50 - 200 °C

100 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z8232

MBT 5252

-

1 x Pt 100

-50 - 200 °C

150 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z8233

MBT 5252

-

1 x Pt 100

-50 - 200 °C

200 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z8234

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

50 mm

50 mm

4 - 20 mA

-

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z8235

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

100 mm

50 mm

4 - 20 mA

-

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z8236

MBT 5252

0 - 100 °C

1 x Pt 100

084Z6266



Characteristic

Value
Type MBT 5252
Weight 0.400 Kg
Ambient temperature max. [°C] 85 °C
Ambient temperature max. [°F] 185 °F
Connection standard ISO 228
Connection type G
EAN 5702423137053
Electrical connection Type B
Electrical connection Type B / Pg 16
Electrical connection size Pg 16
Enclosure rating IP65
Extension length [in] 2,00 in
Extension length [mm] 50 mm
Insertion length [in] 4,00 in
Insertion length [mm] 100 mm
Number of terminals [pcs] 3 PC
Output signal [mA] 4 - 20 mA
Packing format Multi pack
Process connection Male/Female Male
Process connection material Stainless steel
Process connection size 1/2
Process connection size G 1/2 A
Process connection standard ISO 228-1-A
Process connection type G
Protection tube diameter [in] 0,40 in
Protection tube diameter [mm] 10,0 mm
Protection tube material AISI 316 Ti
Quantity per packing format 10 PC
Resistance value 1 x Pt 100
Sensor elem. resistance [Ohm] 100 Ohm
Sensor element [pc] 1 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type PT
Sensor Insert exchangeable
Supply voltage [V] d.c. 8,00 - 35,00 V
Temperature Range [°C] -50 - 200 °C
Temperature range [°F] -58 - 392 °F
Tolerance EN 60751 Class B
Transmitter setting range [°C] 0 - 200 °C
Transmitter type Standard
Type designation MBT 5252-0011-0100-0200-G120
Wires [pcs] 2 PC
