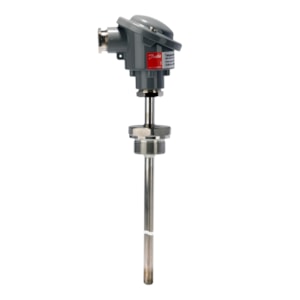

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5252 - C/N 084Z6139

Mã sản phẩm: 084Z6139
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5252 - C/N 084Z6139

MBT 5252, Temperature sensors

The MBT 5252 is a heavy-duty temperature sensor that can be used for controlling cooling water, lubrication oil, hydraulic oil and refrigeration plants within general industry and marine applications.
This temperature sensor is based on a standardized Pt100 or Pt1000 element, which gives a reliable and accurate measurement. The MBT 5252 can be delivered with NTC/PTC elements on request.
If needed, a transmitter (MBT 9110) can be ordered as an integrated part of the sensor. In the low temperature version (-50 °C to +200 °C) the measuring insert is based on a silicone cable, which makes the sensor very resistant towards vibrations.
All parts in contact with the media are made of stainless steel AISI 316 Ti. The MBT 5252 is equipped with a B-head as standard, but can be delivered with B-mini or B-head with screw cap on request.
  • For gaseous or liquid media, e.g. air, gas, vapour, water or oil
  • Up to +400° C media temperatures
  • Available with built-in transmitter
  • Available with all relevant marine approvals
  •

Code no.

Type

Transm.
Setting
range
[°C]

Resistance
value

Temp.
range
[°C]

Ins.
Length
[mm]

Ext.
length
[mm]

Output
sig.
[mA]

Output
sign.

Process
conn.
size

El.
conn.

Wires
[pcs]

084Z6139

MBT 5252

-

1 x Pt 100

-50 - 200 °C

250 mm

50 mm

-

Ohm

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z6140

MBT 5252

-

1 x Pt 100

-50 - 200 °C

80 mm

50 mm

-

Ohm

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z6141

MBT 5252

-

1 x Pt 100

-50 - 200 °C

250 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z6142

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

80 mm

50 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z6143

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

250 mm

50 mm

4 - 20 mA

-

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z6144

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

80 mm

50 mm

4 - 20 mA

-

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z6149

MBT 5252

-

1 x Pt 100

-50 - 400 °C

80 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z6150

MBT 5252

-

1 x Pt 100

-50 - 400 °C

100 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z6151

MBT 5252

-

1 x Pt 100

-50 - 400 °C

150 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z6152

MBT 5252

-

1 x Pt 100

-50 - 400 °C

200 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z6153

MBT 5252

-

1 x Pt 100

-50 - 400 °C

250 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z6164

MBT 5252

-

1 x Pt 100

-50 - 200 °C

80 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z6165

MBT 5252

-

1 x Pt 100

-50 - 200 °C

50 mm

50 mm

-

Ohm

1/2-14, 1/2-14 NPT

Type B, Type B / Pg 16

2 pc

084Z6166

MBT 5252

-

1 x Pt 100

-50 - 200 °C

80 mm

50 mm

-

Ohm

1/2-14, 1/2-14 NPT

Type B, Type B / Pg 16

2 pc

084Z6167

MBT 5252

-

1 x Pt 100

-50 - 200 °C

100 mm

50 mm

-

Ohm

1/2-14, 1/2-14 NPT

Type B, Type B / Pg 16

2 pc

084Z6168

MBT 5252

-

1 x Pt 100

-50 - 200 °C

150 mm

50 mm

-

Ohm

1/2-14, 1/2-14 NPT

Type B, Type B / Pg 16

2 pc

084Z6169

MBT 5252

-

1 x Pt 100

-50 - 200 °C

200 mm

50 mm

-

Ohm

1/2-14, 1/2-14 NPT

Type B, Type B / Pg 16

2 pc

084Z6170

MBT 5252

-

1 x Pt 100

-50 - 200 °C

250 mm

50 mm

-

Ohm

1/2-14, 1/2-14 NPT

Type B, Type B / Pg 16

2 pc

084Z6171

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

50 mm

50 mm

4 - 20 mA

-

1/2-14, 1/2-14 NPT

Type B, Type B / Pg 16

2 pc

084Z6172

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

80 mm

50 mm

4 - 20 mA

-

1/2-14, 1/2-14 NPT

Type B, Type B / Pg 16

2 pc

084Z6173

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

100 mm

50 mm

4 - 20 mA

-

1/2-14, 1/2-14 NPT

Type B, Type B / Pg 16

2 pc

084Z6174

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

150 mm

50 mm

4 - 20 mA

-

1/2-14, 1/2-14 NPT

Type B, Type B / Pg 16

2 pc

084Z6175

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

200 mm

50 mm

4 - 20 mA

-

1/2-14, 1/2-14 NPT

Type B, Type B / Pg 16

2 pc

084Z6176

MBT 5252

0 - 100 °C

1 x Pt 100

-50 - 200 °C

250 mm

50 mm

4 - 20 mA

-

1/2-14, 1/2-14 NPT

Type B, Type B / Pg 16

2 pc

084Z6261

MBT 5252

-

1 x Pt 100

-50 - 200 °C

120 mm

50 mm

-

Ohm

3/4, G 3/4 A

Type B, Type B / Pg 16

2 pc

084Z6263

MBT 5252

-

2 x Pt 100

-50 - 200 °C

50 mm

50 mm

-

Ohm

1/2, G 1/2 A

Type B, Type B / Pg 16

2 pc

084Z6265

MBT 5252

0 - 150 °C

1 x Pt 100

 &nb

084Z6139

Characteristic

Value
Type MBT 5252
Weight 0.456 Kg
Ambient temperature max. [°C] 90 °C
Ambient temperature max. [°F] 194 °F
Connection standard ISO 228
Connection type G
EAN 5702423141852
Electrical connection Type B
Electrical connection Type B / Pg 16
Electrical connection size Pg 16
Enclosure rating IP65
Extension length [in] 2,00 in
Extension length [mm] 50 mm
Insertion length [in] 10,00 in
Insertion length [mm] 250 mm
Number of terminals [pcs] 3 PC
Output signal Ohm
Packing format Multi pack
Process connection Male/Female Male
Process connection material Stainless steel
Process connection size 1/2
Process connection size G 1/2 A
Process connection standard ISO 228-1-A
Process connection type G
Protection tube diameter [in] 0,40 in
Protection tube diameter [mm] 10,0 mm
Protection tube material AISI 316 Ti
Quantity per packing format 8 PC
Resistance value 1 x Pt 100
Sensor elem. resistance [Ohm] 100 Ohm
Sensor element [pc] 1 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type PT
Sensor Insert exchangeable
Temperature Range [°C] -50 - 200 °C
Temperature range [°F] -58 - 392 °F
Tolerance EN 60751 Class B
Type designation MBT 5252-0011-0250-0200-0000
Wires [pcs] 2 PC
