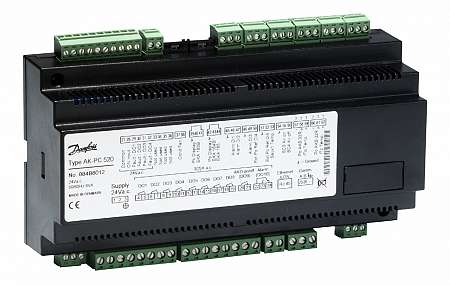

BỘ ĐIỀU KHIỂN AK-PC 520 - C/N 084B8012

Mã sản phẩm: 084B8012
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

AK-PC 520, Pack controller

AK-PC 520 is used for capacity regulation of compressors or condensers in small refrigerating systems.
There are eight outputs and up to 4 compressors and 4 fans can be coupled.
Regulation is based on signals from one pressure transmitter for the compressor regulation and one pressure transmitter for the condenser regulation plus one temperature sensor for the air temperature before the condenser.
The two pressure transmitters can be replaced by two temperature sensors when regulation has to be carried out on brine systems.



Code no.

Type

Controller
type

Function

Applicat.
area

More
info.

Display
 -
option

Display
incl.

Communic.

Max. no. of
compressors

Digital
outputs
(DO)
[pc]

084B8012

AK-PC 520

Pack Controller

Capacity Contr.

Capacity control

-

EKA 163B,
EKA 164B,
EKA 165

No

ETHER, LON

4 pc

10 pc

084B8061

AK-Pack Kit 515

-

-

-

-

-

-

-

-

10 pc



Type AK-PC 520  AK-Pack Kit 515

Code no.  084B8012  084B8061

AK-PC 520, Pack controller
AK-PC 520 is used for capacity regulation of compressors or condensers in small refrigerating systems.
There are eight outputs and up to 4 compressors and 4 fans can be coupled.
Regulation is based on signals from one pressure transmitter for the compressor regulation and one pressure transmitter for the condenser regulation plus one temperature sensor for the air temperature before the condenser.
The two pressure transmitters can be replaced by two temperature sensors when regulation has to be carried out on brine systems.



084B8012



Characteristic

Value
Type AK-PC 520
Weight 0.440 Kg
Application area Capacity control
Approval CE, GOST AE68
Communication type ETHER
Communication type LON
Controller type PACK CONTROLLER
Number of digital outputs (DO) [pc] 10 pc
Display - option EKA 163B
Display - option EKA 164B
Display - option EKA 165
Display included No
EAN number 5702423283385
Frequency [Hz] 50/60 HZ
Function Capacity Contr.
Max. number of compressors 4 pc
Pack format Multi pack
Power consumption [VA] 8,0 VA
Quantity per pack format 10 pc
Supply voltage [V a.c.] 24 V



Type AK-PC 520  AK-Pack Kit 515

Code no.  084B8012  084B8061
