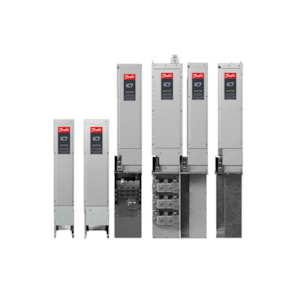

MÁY BIẾN TẦN DANFOSS IC7-60SAIN05-658AE00F4+AE01+AKFX+BAMT+BDC1+BEXX+BF20+BGK1+BH15+BK15+CAM0+DAAU - C/N 137U9784

Gross weight

130 Kilogram

Net weight

110 Kilogram

Volume

520 Liter

EAN

5715253783499

Product series

+DAAU

iC7-Automation

Product group

IC7-60

iC7-60

Product category

SA

System module, air-cooled

Product type

IN

Inverter module, INU

Mains voltage

05

380-500 V AC

Current rating

-658A

658 A

Power rating

355

355 kW/500 HP

Salescode part 5

+DAAU

+DAAU

Protection rating

E00

IP00/Open Type

EMC category

F4

C4 category

Integration unit

+AE01

Short, no filter

Mains input device

+AJXX

None

DC fuses and devices

+AKFX

DC bus fuses

Communication interface, X1/X2

+BAMT

Modbus TCP OS7MT

Communication interface, X0

+BBEL

Ethernet port, no protocol

Standard I/O

+BDC1

I/O and Relay Option OC7C1

Functional safety

+BEXX

None, not upgradable

Control panel

+BF20

Control Panel 2.8 OPX20

Control panel mounting type

+BGK1

Flush mount

Control panel cable length

+BH15

1.5 m (5 ft)

Control unit cable length

+BK15

1.5 m (5 ft), Fiber

StarCoupler board cable length

+BLXX

None

Option slot A

+CAM0

Encoder/Resolver Option OC7M0

Option slot B

+CBXX

None, without mounting plate

Option slot C

+CCXX

None, without mounting plate

Option slot D

+CDXX

None, without mounting plate

Option slot E

+CEXX

None, without mounting plate

Option slot F

+CFXX

None, without mounting plate

Option slot G

+CGXX

None, without mounting plate

Option slot H

+CHXX

None, without mounting plate

Option slot I

+CIXX

None, without mounting plate

Option slot J

+CJXX

None, without mounting plate

Language package

+EL01

Global

Customer specific application

+DBXX

None

Additional drive features 1

+DD1X

None

Additional drive features 2

+DE2X

None

Additional drive features 3

+DF3X

None

Additional drive features 4

+DG4X

None

Additional drive features 5

+DH5X

None

High speed enabled

+DI6X

No

Customization file package ID

+EAXXXXXX

No customization

Product software ID

+ECXXX

Latest released version

Technical documentation

+EGXX

None

Documentation language

+EHXX

Multi-language

Customer-specific label

+EJXX

None

Shipping package

+TACB

Cardboard box package

Product specific marine cert.

+VBXX

None

Frame designation

IR11

IR11

Modelcode01

IC7-60SAIN05-658AE00F4

Modelcode02

+AE01+AKFX

Modelcode03

+BAMT+BDC1+BEXX+BF20

Modelcode04

+BGK1+BH15+BK15+CAM0

Modelcode06

+DAAU

Main unit Width

235mm/9.3in

235mm/9.3in

Main unit Height

1302mm/51.3in

1302mm/51.3in

Main unit Depth

553mm/21.8in

553mm/21.8in

Calculated Gross Weight [kg]

130

Calculated Net Weight [kg]

110

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

AC voltage

3X0-400/460/500VAC

3X0-400/460/500VAC

Continous current IH (1/5min)

547A(400VAC)/490A(460VAC)

547A(400VAC)/490A(460VAC)

Continous current IL (1/5min)

658A(400VAC)/590A(460VAC)

658A(400VAC)/590A(460VAC)

Cooling circuit connector type

+ANXX

Not relevant

Cooling circuit hose length

+AOXX

Not relevant

Cooling type

Air Cooled

Air Cooled

DC Bus current

721A(540VDC)

721A(540VDC)

DC Bus voltage

465-740VDC

465-740VDC

DC power

389kW(540VDC)

389kW(540VDC)

Enclosure rating

IP00 / OPEN TYPE

IP00 / OPEN TYPE

Extra environmental protection

+AGCX

Coated boards

Marine construction

+AFXX

None

Nominal AC current

672A(400VAC)/603A(460VAC)

672A(400VAC)/603A(460VAC)

Output frequency

0-590Hz

0-590Hz

Overload current IH (1/5min)

821A(400VAC)/735A(460VAC)

821A(400VAC)/735A(460VAC)

Overload current IL (1/5min)

724A(400VAC)/649A(460VAC)

724A(400VAC)/649A(460VAC)

Product Catalog

NO_VIEW

NO VIEW

Product Category -DrivesSymbol

System module, air-cooled

System module, air-cooled

Product Type - DrivesSymbol

Inverter module

Inverter module

Salescode part 1

IC7-60SAIN05-658AE00F4

IC7-60SAIN05-658AE00F4

Salescode part 2

+AE01+AKFX

+AE01+AKFX

Salescode part 3

+BAMT+BDC1+BEXX+BF20

+BAMT+BDC1+BEXX+BF20

Salescode part 4

+BGK1+BH15+BK15+CAM0

+BGK1+BH15+BK15+CAM0

Short circuit current rating

100kA

100kA

Start current Imax (3sec)

930A

930A

Storage temperature

-40...70°C/-40...158°F

-40...70°C/-40...158°F

Typical motor power PH2 (150%)

250kW(400VAC)/350Hp(460VAC)

250kW(400VAC)/350Hp(460VAC)

Typical motor power PL (110%)

355kW(400VAC)/500Hp(460VAC)

355kW(400VAC)/500Hp(460VAC)
