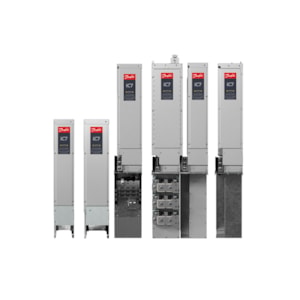

MÁY BIẾN TẦN DANFOSS IC7-60SAIN05-1450E00F4+AE10+BAMT+BDC1+BEXX+BF20+CAC0+CBC1+CCR0+CDT0+CEX0+CFX0+CG - C/N 137U8141

Gross weight

264 Kilogram

Net weight

204 Kilogram

Volume

1508 Liter

EAN

5715253766546

Product series

+DAAU

iC7-Automation

Product group

IC7-60

iC7-60

Product category

SA

System module, air-cooled

Product type

IN

Inverter module, INU

Mains voltage

05

380-500 V AC

Current rating

-1450

1450 A

Power rating

800

800 kW/1200 HP

Salescode part 5

+CCR0+CDT0+CEX0+CFX0+CGX0+CHX0

+CCR0+CDT0+CEX0+CFX0+CGX0+CHX0

Protection rating

E00

IP00/Open Type

EMC category

F4

C4 category

Integration unit

+AE10

Standard, no filter

Mains input device

+AJXX

None

DC fuses and devices

+AKXX

None

Communication interface, X1/X2

+BAMT

Modbus TCP OS7MT

Communication interface, X0

+BBEL

Ethernet port, no protocol

Standard I/O

+BDC1

I/O and Relay Option OC7C1

Functional safety

+BEXX

None, not upgradable

Control panel

+BF20

Control Panel 2.8 OPX20

Control panel mounting type

+BGXX

None

Control panel cable length

+BHXX

None

Control unit cable length

+BKXX

None

StarCoupler board cable length

+BLXX

None

Option slot A

+CAC0

General Purpose I/O OC7C0

Option slot B

+CBC1

I/O and Relay Option OC7C1

Option slot C

+CCR0

Relay Option OC7R0

Option slot D

+CDT0

Temperature Measurement OC7T0

Option slot E

+CEX0

None

Option slot F

+CFX0

None

Option slot G

+CGX0

None

Option slot H

+CHX0

None

Option slot I

+CIX0

None

Option slot J

+CJX0

None

Language package

+EL01

Global

Customer specific application

+DBXX

None

Additional drive features 1

+DD1X

None

Additional drive features 2

+DE2X

None

Additional drive features 3

+DF3X

None

Additional drive features 4

+DG4X

None

Additional drive features 5

+DH5X

None

High speed enabled

+DI6X

No

Customization file package ID

+EAXXXXXX

No customization

Product software ID

+ECXXX

Latest released version

Technical documentation

+EGIN

Installation guide

Documentation language

+EHEN

English

Customer-specific label

+EJXX

None

Shipping package

+TACB

Cardboard box package

Product specific marine cert.

+VBXX

None

Frame designation

2XIR11

2xIR11

Modelcode01

IC7-60SAIN05-1450E00F4

Modelcode02

+AE10

Modelcode03

+BAMT+BDC1+BEXX+BF20

Modelcode04

+CAC0+CBC1

Modelcode05

+CCR0+CDT0+CEX0+CFX0+CGX0+CHX0

Modelcode06

+CIX0+CJX0+DAAU

Modelcode08

+EGIN+EHEN

Main unit Width

2x235mm/9.3in

2x235mm/9.3in

Main unit Height

1530mm/60.2in

1530mm/60.2in

Main unit Depth

553mm/21.8in

553mm/21.8in

Calculated Gross Weight [kg]

264

Calculated Net Weight [kg]

204

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

AC voltage

3X0-400/460/500VAC

3X0-400/460/500VAC

Continous current IH (1/5min)

1210A(400VAC)/1080A(460VAC)

1210A(400VAC)/1080A(460VAC)

Continous current IL (1/5min)

1450A(400VAC)/1300A(460VAC)

1450A(400VAC)/1300A(460VAC)

Cooling circuit connector type

+ANXX

Not relevant

Cooling circuit hose length

+AOXX

Not relevant

Cooling type

Air Cooled

Air Cooled

DC Bus current

1625A(540VDC)

1625A(540VDC)

DC Bus voltage

465-740VDC

465-740VDC

DC power

877kW(540VDC)

877kW(540VDC)

Enclosure rating

IP00 / OPEN TYPE

IP00 / OPEN TYPE

Extra environmental protection

+AGCX

Coated boards

Marine construction

+AFXX

None

Nominal AC current

1481A(400VAC)/1328A(460VAC)

1481A(400VAC)/1328A(460VAC)

Output frequency

0-590Hz

0-590Hz

Overload current IH (1/5min)

1815A(400VAC)/1620A(460VAC)

1815A(400VAC)/1620A(460VAC)

Overload current IL (1/5min)

1595A(400VAC)/1430A(460VAC)

1595A(400VAC)/1430A(460VAC)

Product Catalog

NO_VIEW

NO VIEW

Product Category -DrivesSymbol

System module, air-cooled

System module, air-cooled

Product Type - DrivesSymbol

Inverter module

Inverter module

Salescode part 1

IC7-60SAIN05-1450E00F4

IC7-60SAIN05-1450E00F4

Salescode part 2

+AE10

+AE10

Salescode part 3

+BAMT+BDC1+BEXX+BF20

+BAMT+BDC1+BEXX+BF20

Salescode part 4

+CAC0+CBC1

+CAC0+CBC1

Salescode part 6

+CIX0+CJX0+DAAU

+CIX0+CJX0+DAAU

Salescode part 7

+EGIN+EHEN

+EGIN+EHEN

Short circuit current rating

100kA

100kA

Start current Imax (3sec)

2057A

2057A

Storage temperature

-40...70°C/-40...158°F

-40...70°C/-40...158°F

Typical motor power PH2 (150%)

630kW(400VAC)/850Hp(460VAC)

630kW(400VAC)/850Hp(460VAC)

Typical motor power PL (110%)

800kW(400VAC)/1100Hp(460VAC)

800kW(400VAC)/1100Hp(460VAC)
