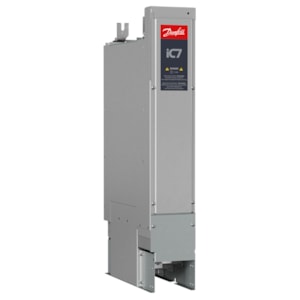

MÁY BIẾN TẦN DANFOSS IC7-60SAIN05-658AE00F4+BAPR+BEXX+BF20+CAC0+DAAU - C/N 137U6457

Gross weight

90 Kilogram

Net weight

75 Kilogram

Volume

377 Liter

EAN

5715253749532

Product series

+DAAU

iC7-Automation

Product group

IC7-60

iC7-60

Product category

SA

System module, air-cooled

Product type

IN

Inverter module, INU

Mains voltage

05

380-500 V AC

Current rating

-658A

658 A

Power rating

355

355 kW/500 HP

Protection rating

E00

IP00/Open Type

EMC category

F4

C4 category

Integration unit

+AEXX

None

Mains input device

+AJXX

None

DC fuses and devices

+AKXX

None

Communication interface, X1/X2

+BAPR

PROFINET RT OS7PR

Communication interface, X0

+BBEL

Ethernet port, no protocol

Standard I/O

+BDXX

None

Functional safety

+BEXX

None, not upgradable

Control panel

+BF20

Control Panel 2.8 OPX20

Control panel mounting type

+BGXX

None

Control panel cable length

+BHXX

None

Control unit cable length

+BKXX

None

StarCoupler board cable length

+BLXX

None

Option slot A

+CAC0

General Purpose I/O OC7C0

Option slot B

+CBXX

None, without mounting plate

Option slot C

+CCXX

None, without mounting plate

Option slot D

+CDXX

None, without mounting plate

Option slot E

+CEXX

None, without mounting plate

Option slot F

+CFXX

None, without mounting plate

Option slot G

+CGXX

None, without mounting plate

Option slot H

+CHXX

None, without mounting plate

Option slot I

+CIXX

None, without mounting plate

Option slot J

+CJXX

None, without mounting plate

Language package

+EL01

Global

Customer specific application

+DBXX

None

Additional drive features 1

+DD1X

None

Additional drive features 2

+DE2X

None

Additional drive features 3

+DF3X

None

Additional drive features 4

+DG4X

None

Additional drive features 5

+DH5X

None

High speed enabled

+DI6X

No

Customization file package ID

+EAXXXXXX

No customization

Product software ID

+ECXXX

Latest released version

Technical documentation

+EGXX

None

Documentation language

+EHXX

Multi-language

Customer-specific label

+EJXX

None

Shipping package

+TACB

Cardboard box package

Product specific marine cert.

+VBXX

None

Frame designation

IM11

IM11

Modelcode01

IC7-60SAIN05-658AE00F4

Modelcode03

+BAPR+BEXX+BF20

Modelcode04

+CAC0

Modelcode06

+DAAU

Main unit Width

210mm/8.3in

210mm/8.3in

Main unit Height

990mm/39in

990mm/39in

Main unit Depth

502mm/19.8in

502mm/19.8in

Calculated Gross Weight [kg]

90

Calculated Net Weight [kg]

75

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

AC voltage

3X0-400/460/500VAC

3X0-400/460/500VAC

Continous current IH (1/5min)

547A(400VAC)/490A(460VAC)

547A(400VAC)/490A(460VAC)

Continous current IL (1/5min)

658A(400VAC)/590A(460VAC)

658A(400VAC)/590A(460VAC)

Cooling circuit connector type

+ANXX

Not relevant

Cooling circuit hose length

+AOXX

Not relevant

Cooling type

Air Cooled

Air Cooled

DC Bus current

721A(540VDC)

721A(540VDC)

DC Bus voltage

465-740VDC

465-740VDC

DC power

389kW(540VDC)

389kW(540VDC)

Enclosure rating

IP00 / OPEN TYPE

IP00 / OPEN TYPE

Extra environmental protection

+AGCX

Coated boards

Marine construction

+AFXX

None

Nominal AC current

672A(400VAC)/603A(460VAC)

672A(400VAC)/603A(460VAC)

Output frequency

0-590Hz

0-590Hz

Overload current IH (1/5min)

821A(400VAC)/735A(460VAC)

821A(400VAC)/735A(460VAC)

Overload current IL (1/5min)

724A(400VAC)/649A(460VAC)

724A(400VAC)/649A(460VAC)

Product Catalog

NO_VIEW

NO VIEW

Product Category -DrivesSymbol

System module, air-cooled

System module, air-cooled

Product Type - DrivesSymbol

Inverter module

Inverter module

Salescode part 1

IC7-60SAIN05-658AE00F4

IC7-60SAIN05-658AE00F4

Salescode part 2

+BAPR+BEXX+BF20

+BAPR+BEXX+BF20

Salescode part 3

+CAC0

+CAC0

Salescode part 4

+DAAU

+DAAU

Short circuit current rating

100kA

100kA

Start current Imax (3sec)

930A

930A

Storage temperature

-40...70°C/-40...158°F

-40...70°C/-40...158°F

Typical motor power PH2 (150%)

250kW(400VAC)/350Hp(460VAC)

250kW(400VAC)/350Hp(460VAC)

Typical motor power PL (110%)

355kW(400VAC)/500Hp(460VAC)

355kW(400VAC)/500Hp(460VAC)
