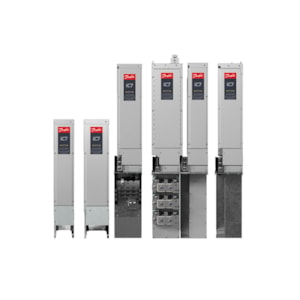

MÁY BIẾN TẦN DANFOSS IC7-60SAIN05-1260E00F4+AE01+AKFX+BAMT+BDC1+BEXX+BK25+BL25+CAX0+CBX0+CCX0+CDX0+CE - C/N 137U1600

Gross weight

260 Kilogram

Net weight

220 Kilogram

Volume

1041 Liter

EAN

5715253699196

Product series

+DAAU

iC7-Automation

Product group

IC7-60

iC7-60

Product category

SA

System module, air-cooled

Product type

IN

Inverter module, INU

Mains voltage

05

380-500 V AC

Current rating

-1260

1260 A

Power rating

710

710 kW/1000 HP

Salescode part 5

+CCX0+CDX0+CEX0+CFX0+CGX0+CHX0

+CCX0+CDX0+CEX0+CFX0+CGX0+CHX0

Protection rating

E00

IP00/Open Type

EMC category

F4

C4 category

Integration unit

+AE01

Short, no filter

Mains input device

+AJXX

None

DC fuses and devices

+AKFX

DC bus fuses

Communication interface, X1/X2

+BAMT

Modbus TCP OS7MT

Communication interface, X0

+BBEL

Ethernet port, no protocol

Standard I/O

+BDC1

I/O and Relay Option OC7C1

Functional safety

+BEXX

None, not upgradable

Control panel

+BFXX

None

Control panel mounting type

+BGXX

None

Control panel cable length

+BHXX

None

Control unit cable length

+BK25

2.5 m (8 ft), Fiber

StarCoupler board cable length

+BL25

2.5 m (8 ft), Fiber

Option slot A

+CAX0

None

Option slot B

+CBX0

None

Option slot C

+CCX0

None

Option slot D

+CDX0

None

Option slot E

+CEX0

None

Option slot F

+CFX0

None

Option slot G

+CGX0

None

Option slot H

+CHX0

None

Option slot I

+CIX0

None

Option slot J

+CJX0

None

Language package

+EL01

Global

Customer specific application

+DBXX

None

Additional drive features 1

+DD1X

None

Additional drive features 2

+DE2X

None

Additional drive features 3

+DF3X

None

Additional drive features 4

+DG4X

None

Additional drive features 5

+DH5X

None

High speed enabled

+DI6X

No

Customization file package ID

+EAXXXXXX

No customization

Product software ID

+ECXXX

Latest released version

Technical documentation

+EGXX

None

Documentation language

+EHXX

Multi-language

Customer-specific label

+EJXX

None

Shipping package

+TACB

Cardboard box package

Product specific marine cert.

+VBXX

None

Frame designation

2XIR11

2xIR11

Modelcode01

IC7-60SAIN05-1260E00F4

Modelcode02

+AE01+AKFX

Modelcode03

+BAMT+BDC1+BEXX

Modelcode04

+BK25+BL25+CAX0+CBX0

Modelcode05

+CCX0+CDX0+CEX0+CFX0+CGX0+CHX0

Modelcode06

+CIX0+CJX0+DAAU

Main unit Width

2x235mm/9.3in

2x235mm/9.3in

Main unit Height

1302mm/51.3in

1302mm/51.3in

Main unit Depth

553mm/21.8in

553mm/21.8in

Calculated Gross Weight [kg]

260

Calculated Net Weight [kg]

220

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

AC voltage

3X0-400/460/500VAC

3X0-400/460/500VAC

Continous current IH (1/5min)

1050A(400VAC)/960A(460VAC)

1050A(400VAC)/960A(460VAC)

Continous current IL (1/5min)

1260A(400VAC)/1150A(460VAC)

1260A(400VAC)/1150A(460VAC)

Cooling circuit connector type

+ANXX

Not relevant

Cooling circuit hose length

+AOXX

Not relevant

Cooling type

Air Cooled

Air Cooled

DC Bus current

1441A(540VDC)

1441A(540VDC)

DC Bus voltage

465-740VDC

465-740VDC

DC power

778kW(540VDC)

778kW(540VDC)

Enclosure rating

IP00 / OPEN TYPE

IP00 / OPEN TYPE

Extra environmental protection

+AGCX

Coated boards

Marine construction

+AFXX

None

Nominal AC current

1287A(400VAC)/1174A(460VAC)

1287A(400VAC)/1174A(460VAC)

Output frequency

0-590Hz

0-590Hz

Overload current IH (1/5min)

1575A(400VAC)/1440A(460VAC)

1575A(400VAC)/1440A(460VAC)

Overload current IL (1/5min)

1386A(400VAC)/1265A(460VAC)

1386A(400VAC)/1265A(460VAC)

Product Catalog

NO_VIEW

NO VIEW

Product Category -DrivesSymbol

System module, air-cooled

System module, air-cooled

Product Type - DrivesSymbol

Inverter module

Inverter module

Salescode part 1

IC7-60SAIN05-1260E00F4

IC7-60SAIN05-1260E00F4

Salescode part 2

+AE01+AKFX

+AE01+AKFX

Salescode part 3

+BAMT+BDC1+BEXX

+BAMT+BDC1+BEXX

Salescode part 4

+BK25+BL25+CAX0+CBX0

+BK25+BL25+CAX0+CBX0

Salescode part 6

+CIX0+CJX0+DAAU

+CIX0+CJX0+DAAU

Short circuit current rating

100kA

100kA

Start current Imax (3sec)

1785A

1785A

Storage temperature

-40...70°C/-40...158°F

-40...70°C/-40...158°F

Typical motor power PH2 (150%)

560kW(400VAC)/750Hp(460VAC)

560kW(400VAC)/750Hp(460VAC)

Typical motor power PL (110%)

710kW(400VAC)/950Hp(460VAC)

710kW(400VAC)/950Hp(460VAC)
